Keyed One Side

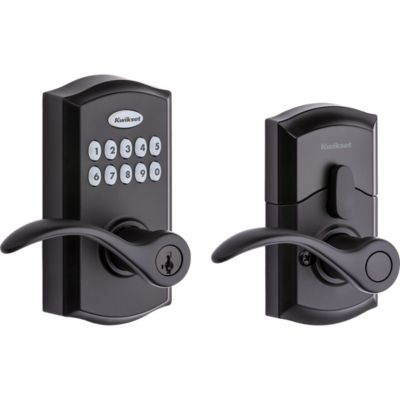

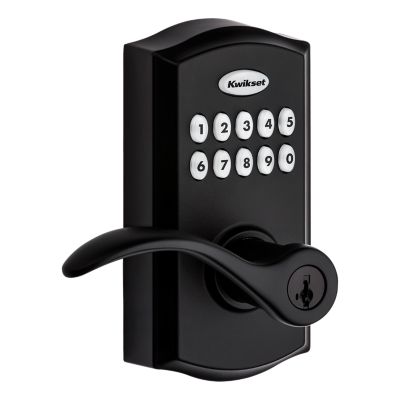

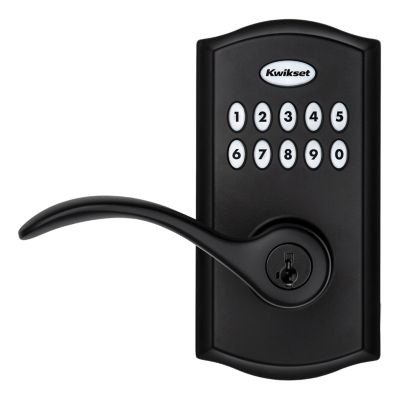

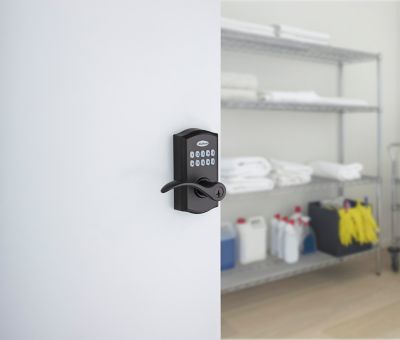

SmartCode 955 Pembroke Light Commercial Electronic Lever
955PML 514
Switch between three entry modes
Property managers can take advantage of three different locking modes for the most fitting application of this electronic lever for their properties.
Auto Lock
The lock can be set to stay locked after every entry and exit. A key or code is required for entry each time. This is ideal for garage, side or back doors, and storage sheds.
Side doors
Interior garage doors
Passage
The lock can be set to stay unlocked. No key or code required for access. This is ideal of internal office spaces that allow access at any time.
Office Spaces
Disable Passage
Property managers can set to 'Disable Passage Mode' so that it auto-locks every time and a key or code is always required for entry. This is ideal for restrooms in restaurants and gas stations, and utility closets.
Restrooms
Gas Stations
SmartCode 955 is perfect for...
You control who comes and goes.
30 User Codes
Customize up to 30 unique user codes for controlled access.
Programming Code
Optional programming code allows for management of lock settings from the exterior keypad instead of the programming button in the interior.
Designed for the needs of commercial use.
This commercial grade lever has been tested to 500,000 cycles and is BHMA certified. It has the strength and durability optimized for commercial applications, with the convenience of keyless entry.
Upgrade your home for greater peace of mind.
The SmartCode 955 electronic lever has been tested in three areas most important to homeowners like you: security, durability, and finish. It has the highest residential security rating to keep you safe and secure.
Additional Features
The 9V battery will last up to three years, depending on lock usage
Reversible lever to fit right-hand and left-hand doors
Optional one-time access code for emergencies
Keypad can be disabled entirely for entry using key only for long periods of inaccessibility
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

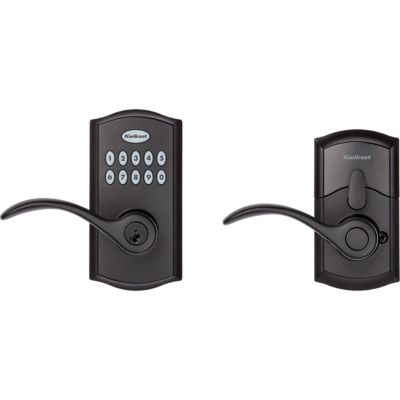

- Keyed lever operated by key outside or electronic keypad and thumb turn inside
- Comes with 2 keys
- Latch has round corner faceplate
- Meets ADA/ANSI A117.1 requirements
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

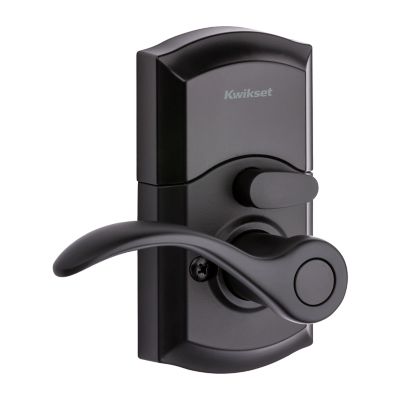

- Locking mechanism functions with turn piece on the interior of the lock
- Keypad stays lit for 5 seconds after inactivity
- Multiple pre-defined Auto-locking settings available
- Easily installs in minutes with just a screwdriver
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Similar Products
4 Finishes

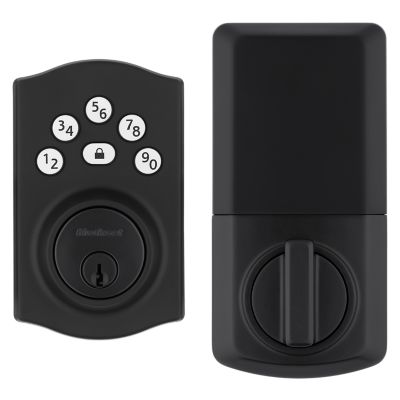

Powerbolt 240 Traditional Keypad Electronic Lock
3 Finishes

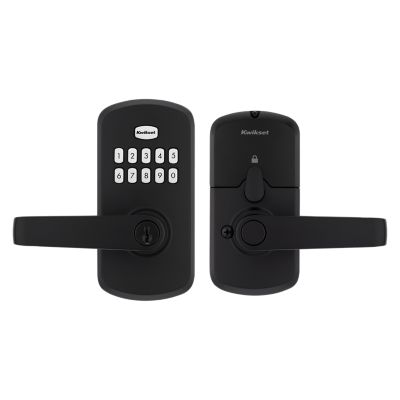

SmartCode 955 Kingston Light Commercial Electronic Lever
Light Commercial
Specifications
All Measurements are in Inches
-
Kwikset FamilySmartCode 955
-
Product TypeLever
-
StyleTraditional
-
Entry Has SmartKey?Yes
-
Has Microban?Yes
-
ANSI GradeGrade 2
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness2
-
Assembled Height5-31/32
-
Assembled Width5-3/4
-
Assembled Length3-5/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantYes
-
Hub RequiredNo Hub required
-
# Of Codes30
-
Battery Type Required9V, included
