Home / Products / Electronic / Powerbolt 240 Traditional Keypad Electronic Lock

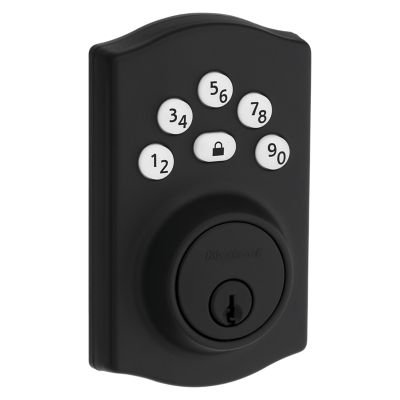

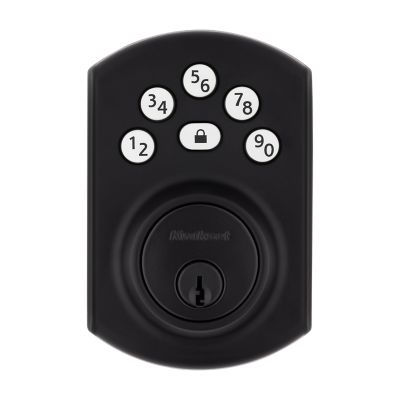

Powerbolt 240 Traditional Keypad Electronic Lock

9240 TRL 514

Features

  • For use on exterior doors where keyed entry and security is needed
  • Comes with 1 key
  • Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
  • ANSI/BHMA grade 3 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 inch deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Keypad stays lit for 10 seconds after inactivity
  • Multiple pre-defined Auto-locking settings available
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty, 1 year electronics warranty
  • Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    Powerbolt 9240
  • Product Type
    Deadbolt
  • Style
    Traditional
  • Entry Has SmartKey?
    No
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 3
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    4-7/16
  • Assembled Width
    2-11/16
  • Assembled Length
    1-1/32
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No
  • Voice Control Enabled
    No voice control
  • Hub Required
    Standalone product, No hub required
  • # Of Codes
    12
  • Battery Type Required
    4 AA, purchase separately

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
