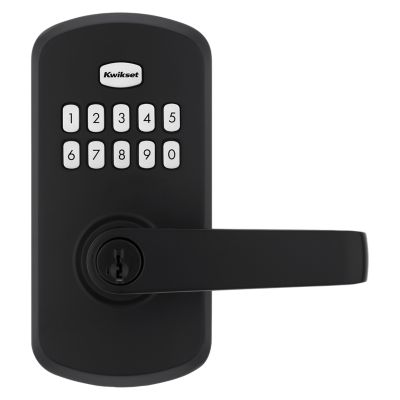

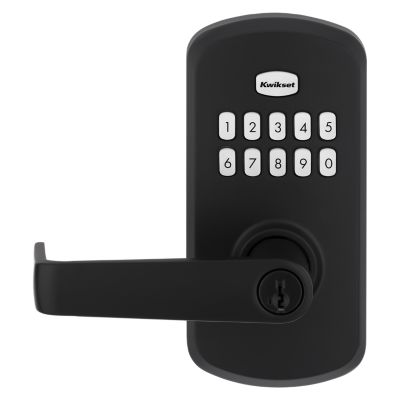

SmartCode 955 Kingston Light Commercial Electronic Lever

955KNL SMT 514

Features

  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

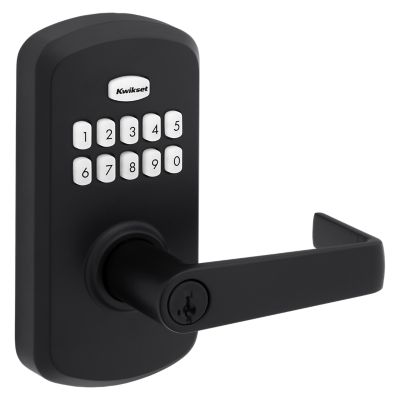

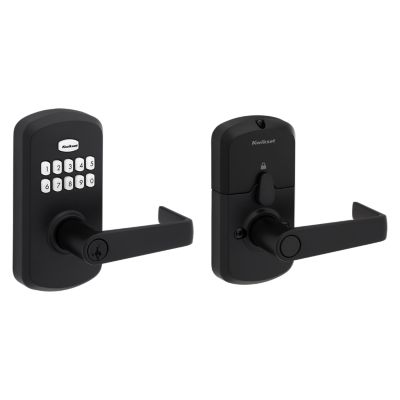

  • Keyed lever operated by key outside or electronic keypad and thumb turn inside

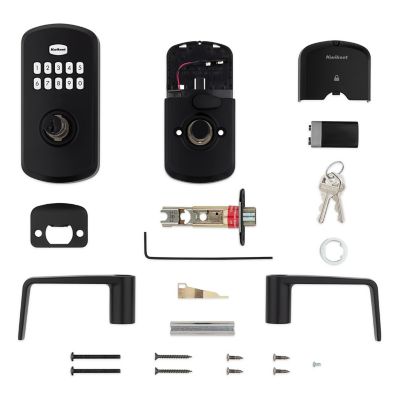

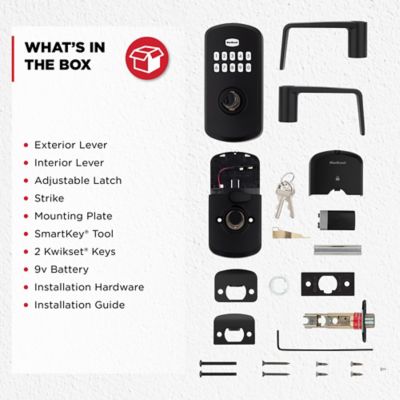

  • Comes with 2 keys

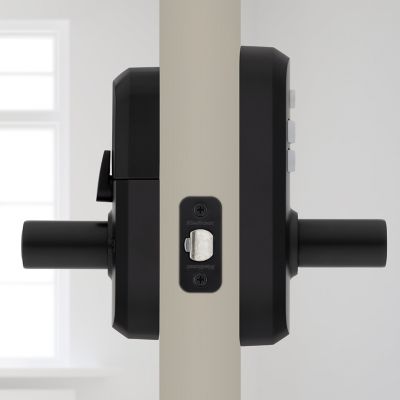

  • Latch has round corner faceplate
  • Meets ADA/ANSI A117.1 requirements
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

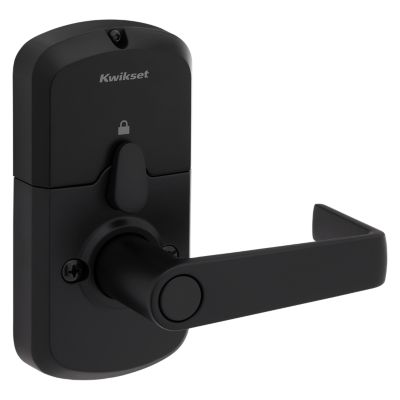

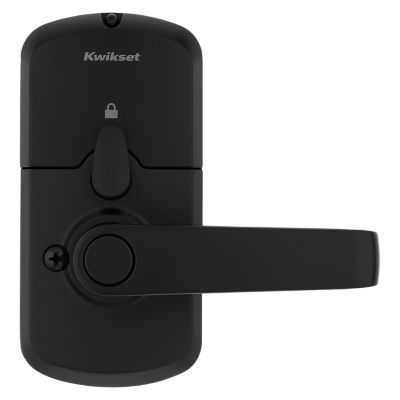

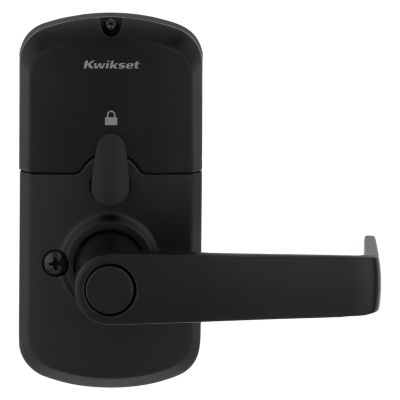

  • Locking mechanism functions with turn piece on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Keypad stays lit for 5 seconds after inactivity

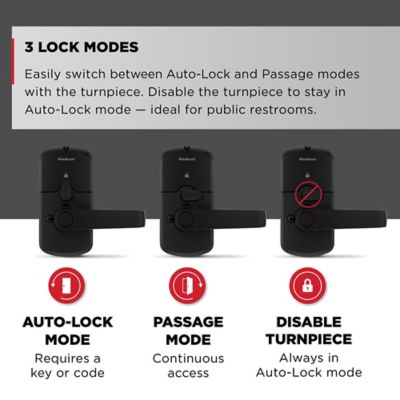

  • Multiple pre-defined Auto-locking settings available
  • Easily installs in minutes with just a screwdriver
  • Lifetime Mechanical, 5 Year Finish

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    SmartCode 955
  • Product Type
    Lever
  • Style
    Traditional
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 2
  • UL Time Rating
    20 min
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    2

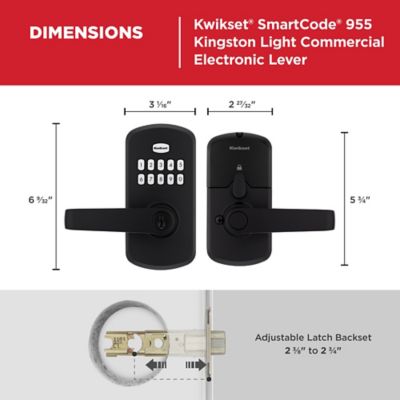

  • Assembled Height
    5-31/32
  • Assembled Width
    5-3/4
  • Assembled Length
    3-5/16
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes
  • Voice Control Enabled
    No voice control
  • Hub Required
    No Hub required

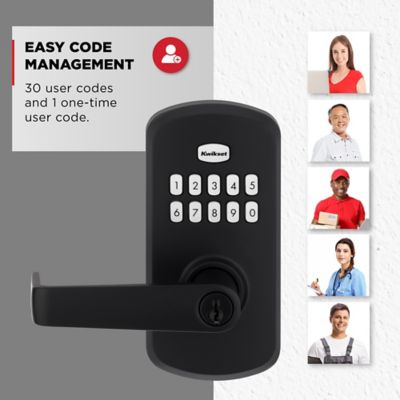

  • # Of Codes
    30

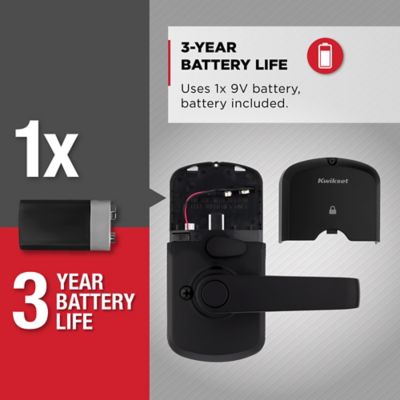

  • Battery Type Required
    9V, included

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
