Keyed One Side
San Clemente Rectangle Deadbolt - Keyed One Side - featuring SmartKey
258 RCT 26 SMT
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Features
- Designer style and superior security with this Kwikset Signature Series™ product
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

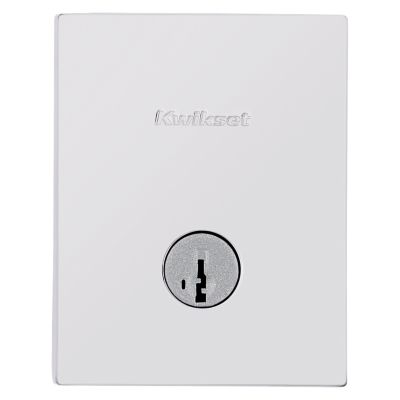

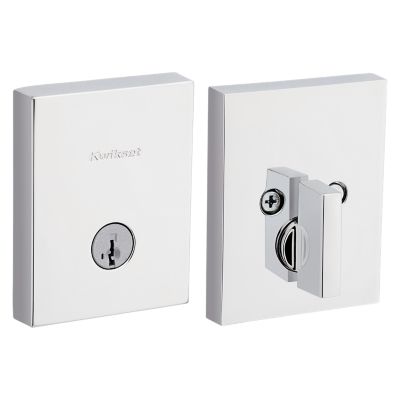

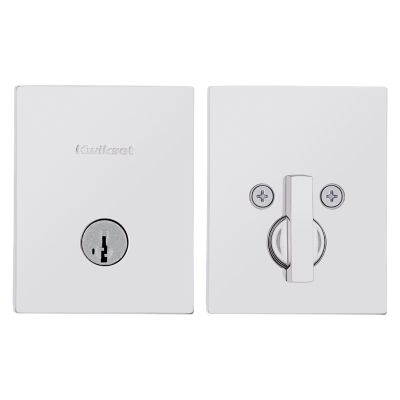

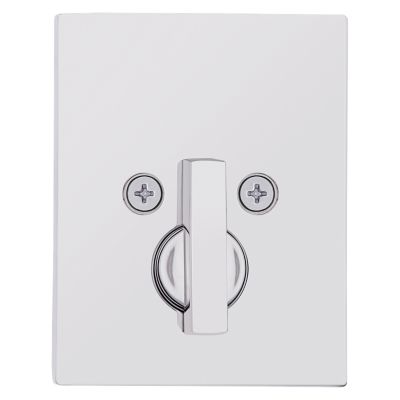

- Deadbolt operated by key outside and thumb turn inside
- Comes with 1 key
- Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
- Deadbolt Latch has 3 interchangable faceplates - round corner, square corner, and drive-in collar
- Certified Highest Residential Security, Durability and Finish - ANSI/BHMA Grade AAA
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw

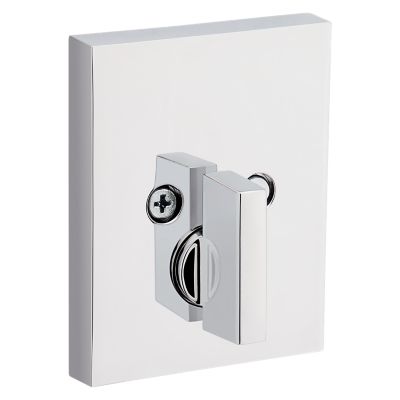

- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
4 Finishes
158 Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
5 Finishes
158 Square Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
6 Finishes
158 Square Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
Uptown Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
Downtown Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
4 Finishes
660 Contemporary Round Deadbolt - Keyed One Side - featuring SmartKey
Kwikset Series
5 Finishes
660 Contemporary Square Deadbolt - Keyed One Side - Featuring SmartKey
Kwikset Series
3 Finishes
Midtown Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
158 Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
Specifications
All Measurements are in Inches
-
Kwikset FamilySan Clemente
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeAAA
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height3-9/16
-
Assembled Width2-3/4
-
Assembled Length9/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
