Keyed One Side
Midtown Deadbolt - Keyed One Side - featuring SmartKey
258 MDT 26 SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features
- Designer style and superior security with this Kwikset Signature Series™ product
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

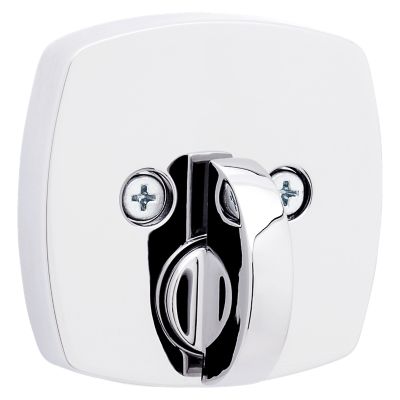

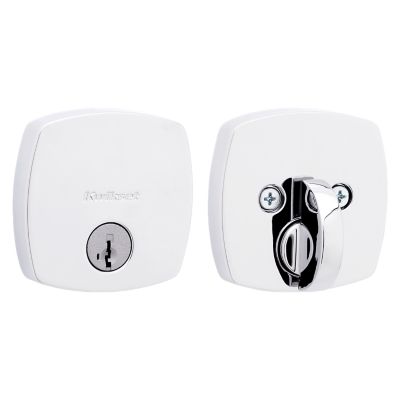

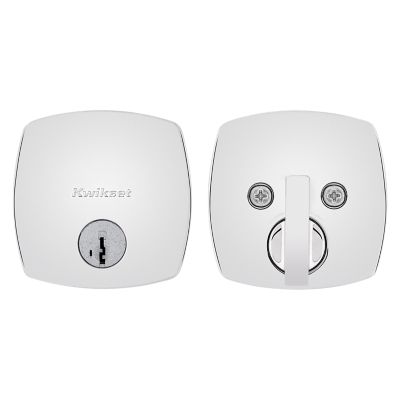

- Deadbolt operated by key outside and thumb turn inside
- Comes with 2 keys

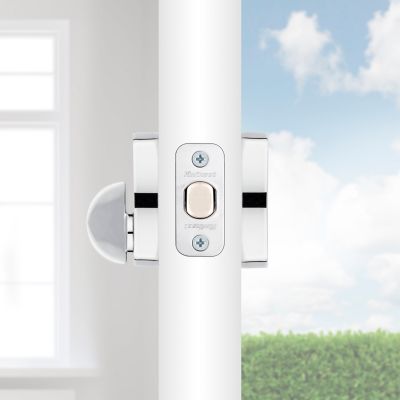

- Deadbolt Latch has 3 interchangable faceplates - round corner, square corner, and drive-in collar
- Certified Highest Residential Security, Durability and Finish - ANSI/BHMA Grade AAA
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- 1 in. deadbolt throw
- 1 inch deadbolt throw

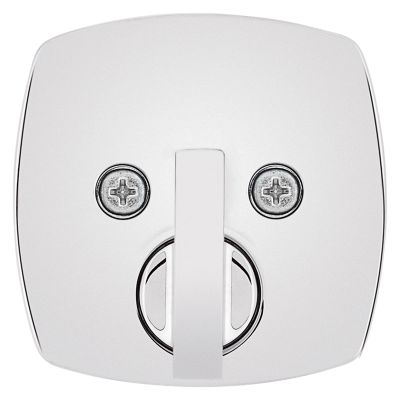

- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
4 Finishes
158 Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
5 Finishes
158 Square Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
6 Finishes
158 Square Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
Uptown Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
Downtown Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
4 Finishes
660 Contemporary Round Deadbolt - Keyed One Side - featuring SmartKey
Kwikset Series
5 Finishes
660 Contemporary Square Deadbolt - Keyed One Side - Featuring SmartKey
Kwikset Series
3 Finishes
San Clemente Rectangle Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
158 Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
Specifications
All Measurements are in Inches
-
Kwikset FamilyMidtown
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeAAA
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-5/8
-
Assembled Width2-5/8
-
Assembled Length1/2
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
