Keyed One Side
Home Connect 620 Contemporary Keypad Connected Smart Lock with Z-Wave Technology
HC620 CNT ZW700LR 514 SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Integration Partners
Kwikset smart locks are offered by leading smart home solution providers and security systems. A total home security solution begins with a Kwikset smart lock. Complete your smart home today!
Features
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Requires 4 AA batteries, included
- Keypad stays lit for 30 seconds after inactivity
- Expanding your security system solution with Home Connect technology, your keyless entry lock will now communicate wirelessly to security and home automation systems via Z-Wave
- Multiple pre-defined Auto-locking settings available
Compatible Technologies
-
Google Assistant
-
Alexa
-
SmartThings
-
Google Home
-
Ring
-
Wink
-
Vera
Similar Products
Specifications

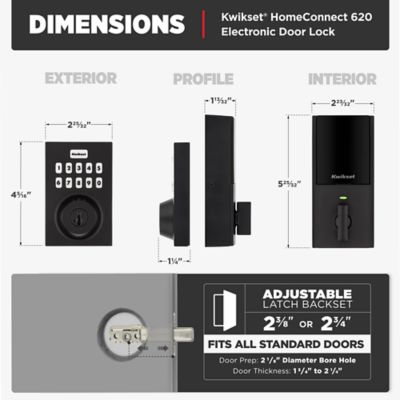

All Measurements are in Inches
-
Kwikset FamilyHome Connect
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeGrade 2
-
UL Time Rating20 min
-
Min Door Thickness1-3/8
-
Max Door Thickness2
-
Assembled Height4-5/16
-
Assembled Width2-25/32
-
Assembled Length1-1/4
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
-
Voice Control EnabledAlexa via Z-Wave ; Alexa via Proprietary Bridge/Gateway ; Google Assistant via Z-Wave ; Google Assistant via Proprietary Bridge/Gateway
-
Lock TechnologyZ-Wave700LR
-
Hub RequiredHub required for remote access
-
Electronic Works WithAlexa ; Google Home ; Google Assistant ; Ring ; SmartThings ; Wink ; Vera
-
# Of Codes250
-
Battery Type Required4 AA, included
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
