Keyed One Side
Home Connect 620 Contemporary Keypad Connected Smart Lock with Z-Wave Technology
HC620 CNT ZW700 15 SMT RCAL RCS CP
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Integration Partners
Kwikset smart locks are offered by leading smart home solution providers and security systems. A total home security solution begins with a Kwikset smart lock. Complete your smart home today!
Vivint
LittleBird

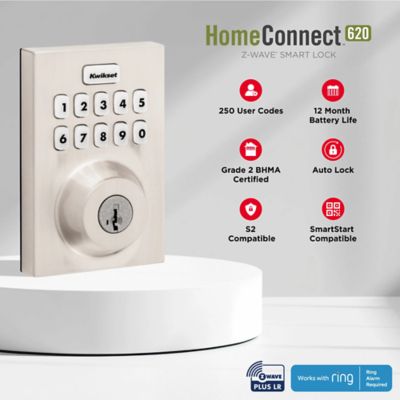

Features
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

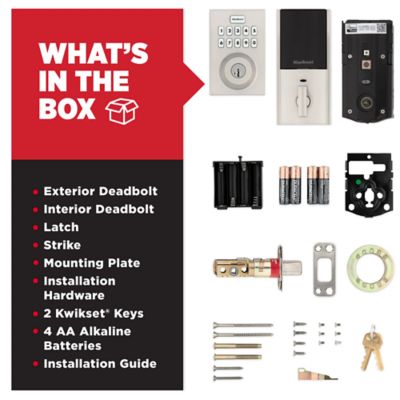

- Comes with 2 keys
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Requires 4 AA batteries, included
- Keypad stays lit for 30 seconds after inactivity

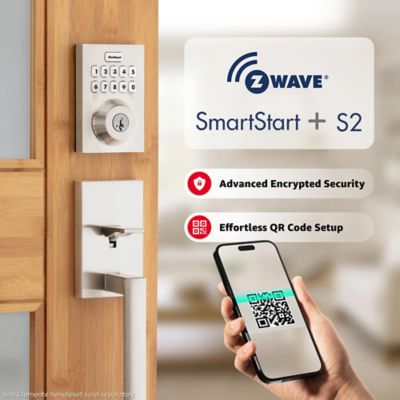

- Expanding your security system solution with Home Connect technology, your keyless entry lock will now communicate wirelessly to security and home automation systems via Z-Wave
- Multiple pre-defined Auto-locking settings available
- Easily installs in minutes with just a screwdriver
Compatible Technologies
-
Google Assistant
-
Alexa
-
SmartThings
-
Google Home
-
Vera
Similar Products
4 Finishes
910 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology
5 Finishes
910 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
4 Finishes
914 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
4 Finishes
916 Smartcode Contemporary Electronic Deadbolt with Z-Wave Technology
2 Finishes
Halo Keypad Wi-Fi Enabled Smart Lock
3 Finishes
Aura Bluetooth Enabled Smart Lock
4 Finishes
Halo Touchscreen Wi-Fi Enabled Smart Lock
2 Finishes
Halo Touch Contemporary Fingerprint Wi-Fi Enabled Smart Lock
4 Finishes
916 Smartcode Contemporary Electronic Deadbolt with Zigbee Technology
4 Finishes
914 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology

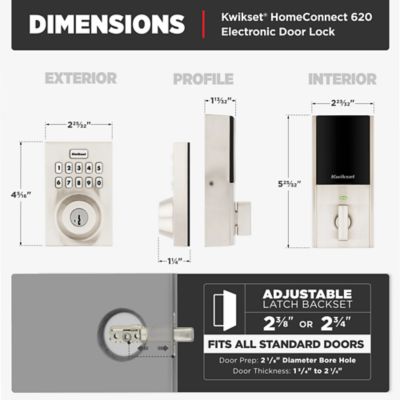

Specifications
All Measurements are in Inches
-
Kwikset FamilyHome Connect
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?Yes
-
ANSI GradeGrade 2
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness2
-
Assembled Height4-5/16
-
Assembled Width2-25/32
-
Assembled Length1-1/4
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
-
Voice Control EnabledAlexa via Samsung SmartThings ; Google Assistant via Samsung SmartThings
-
Lock TechnologyZ-Wave700
-
Hub RequiredHub required for remote access
-
Electronic Works WithAlexa ; Google Assistant ; Google Home ; SmartThings ; Vera
-
# Of Codes250
-
Battery Type Required4 AA, included
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
