Keyed Both Sides

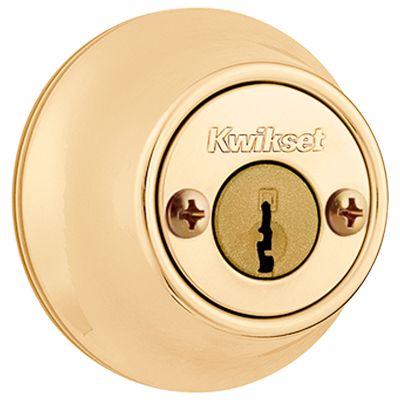

665 Deadbolt - Keyed Both Sides - with Pin & Tumbler
665 3
Features
- For use on exterior doors where keyed entry and security is needed

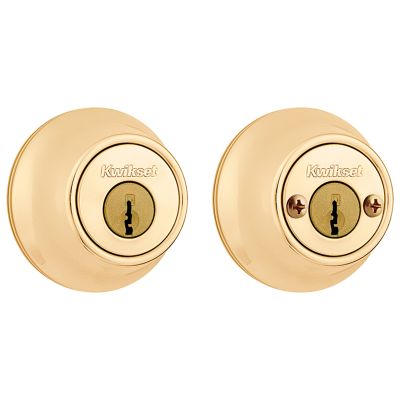

- Deadbolt operated by key on both sides
- Comes with 2 keys
- Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Similar Products
3 Finishes
Gatelatch - Keyed Both Sides - featuring SmartKey
Signature Series
7 Finishes
665 Deadbolt - Keyed Both Sides - featuring SmartKey
Kwikset Series
3 Finishes
Gatelatch - Keyed Both Sides - with Pin & Tumbler
Signature Series
10 Finishes
985 Deadbolt - Keyed Both Sides - featuring SmartKey
Signature Series
9 Finishes
785 Deadbolt - Keyed Both Sides - featuring SmartKey
Signature Series
9 Finishes
785 Deadbolt - Keyed Both Sides - with Pin & Tumbler
Signature Series
Specifications
All Measurements are in Inches
-
Kwikset Family600 Deadbolt Series
-
Product TypeDeadbolt
-
StyleTraditional
-
Entry Has SmartKey?No
-
Has Microban?Yes
-
ANSI GradeGrade 3
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-7/16
-
Assembled Width2-7/16
-
Assembled Length1-1/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
