Keyed Both Sides

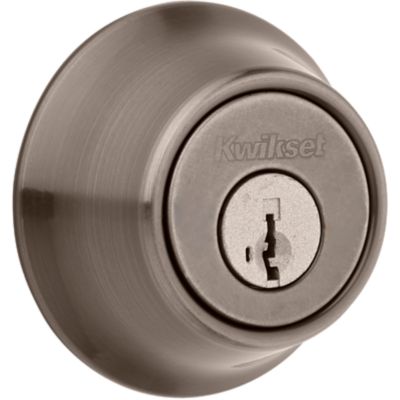

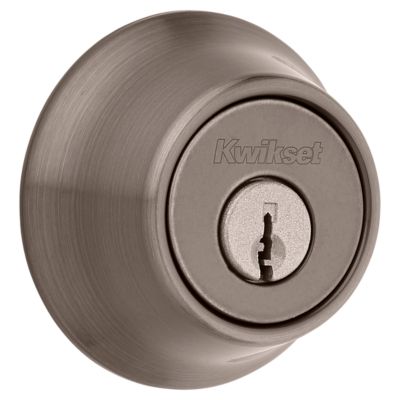

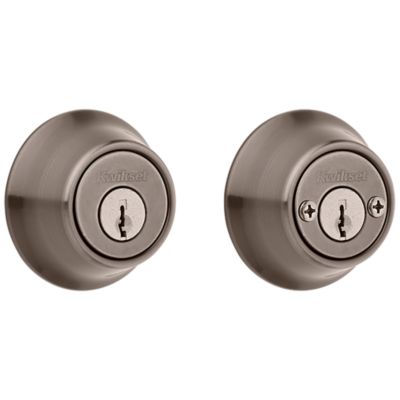

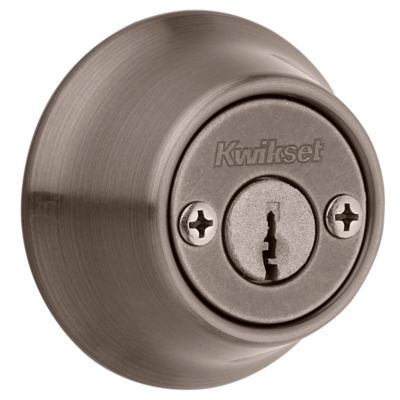

665 Deadbolt - Keyed Both Sides - with Pin & Tumbler
665 15A
Features
- For use on exterior doors where keyed entry and security is needed
- Deadbolt operated by key on both sides
- Comes with 2 keys
- Latch has round corner faceplate
- ANSI/BHMA grade 3 certified
- 1 inch deadbolt throw
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset Family600 Deadbolt Series
-
Product TypeDeadbolt
-
StyleTraditional
-
Entry Has SmartKey?No
-
ANSI GradeGrade 3
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-7/16
-
Assembled Width2-7/16
-
Assembled Length1-1/16
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
