Home / Products / Deadbolts / 159 Square Deadbolt - Keyed Both Sides - with Pin & Tumbler

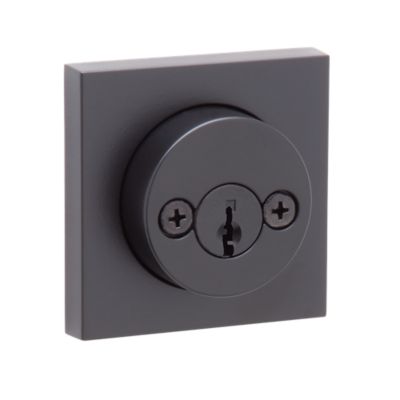

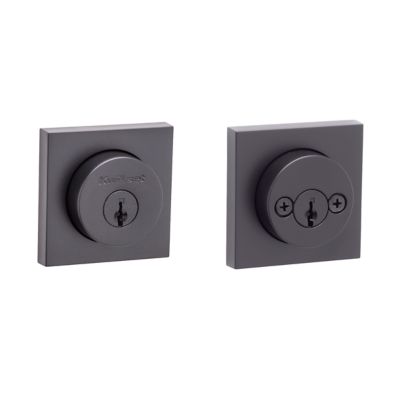

159 Square Deadbolt - Keyed Both Sides - with Pin & Tumbler

Contemporary Halifax Deadbolt

159 SQT 514

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Deadbolt operated by key on both sides
  • Comes with 2 keys
  • Deadbolt Latch has round corner faceplate
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 inch deadbolt throw
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Similar Products

159 Deadbolt - Keyed Both Sides - with Pin & Tumbler

5 Finishes

159 Deadbolt - Keyed Both Sides - with Pin & Tumbler
Signature Series
159 Square Deadbolt - Keyed Both Sides - featuring SmartKey

5 Finishes

159 Square Deadbolt - Keyed Both Sides - featuring SmartKey
Signature Series
159 Round Deadbolt - Keyed Both Sides - featuring SmartKey

5 Finishes

159 Round Deadbolt - Keyed Both Sides - featuring SmartKey
Signature Series

Specifications

All Measurements are in Inches

  • Product Type
    Deadbolt
  • Style
    Contemporary
  • Entry Has SmartKey?
    No
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-19/32
  • Assembled Width
    2-19/32
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
