Keyed Both Sides

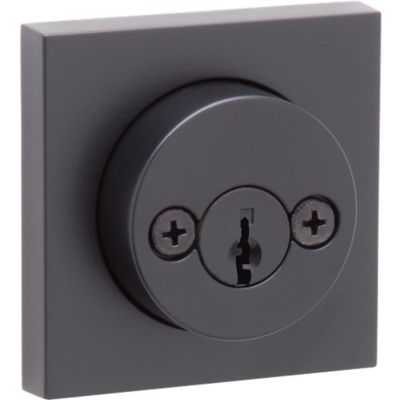

159 Deadbolt - Keyed Both Sides - with Pin & Tumbler
159 RDT 514
Features
- Designer style and superior security with this Kwikset Signature Series™ product
- For use on exterior doors where keyed entry and security is needed
- Deadbolt operated by key on both sides
- Comes with 2 keys
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
Specifications
All Measurements are in Inches
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?No
-
ANSI GradeGrade 2
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-19/32
-
Assembled Width2-19/32
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
