Home / Products / Electronic / Signature Series Deadbolt (Square) with Home Connect with Z-Wave 500 Technology

Signature Series Deadbolt with Home Connect

Control and monitor your lock from anywhere with discreetly integrated Home Connect™ wireless technology.

home connect

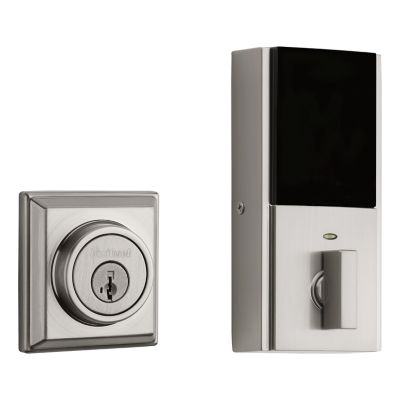

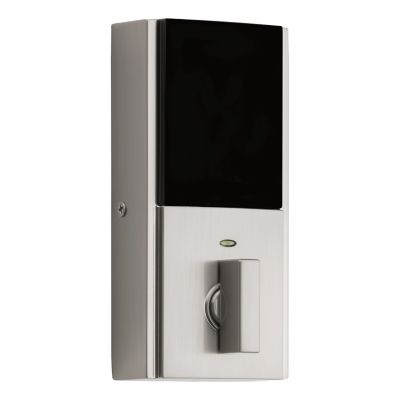

Signature Series Deadbolt (Square) with Home Connect with Z-Wave 500 Technology

914 S 2 CNT ZW500 15

Wireless Technology:

Function:

Keyed One Side

  • Home Connect

Install in Minutes

Connects wirelessly to your Z-Wave® compatible home automation system. With no hard wiring required, all you need is a screwdriver to enjoy the freedom of remote home security.

Integration Partners

Kwikset smart locks are offered by leading smart home solution providers and security systems. A total home security solution begins with a Kwikset smart lock. Complete your smart home today!

Features

  • Motor-driven deadbolt latch allows for true remote locking and unlocking
  • Check status of the door o determine if it’s locked or unlocked
  • Z-Wave Plus Certified with the Z-Wave 500 chipset
  • Extended wireless range and superior 128-bit wireless encryption
  • Tapered designed latch enables misaligned doors to lock without pushing or pulling a door shut
  • BHMA grade 2 certified
  • SmartKey® technology - the lock you can re-key yourself in seconds in three easy steps
  • 30 user codes plus master code feature for added security
  • 20 minute fire rating – UL certified
  • Full 128-bit encryption security
  • SmartKey® re-key technology is compatible with Kwikset (KW1) keyway
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin & tumbler locks
  • Installs in minutes with just a screw driver no hard wiring needed
  • Fits standard doors (1-3/8in. – 2in.) no new screw holes required
  • Z-Wave Plus Certified with the Z-Wave 500 chipset
  • Extended wireless range and superior 128-bit wireless encryption

Compatible Technologies

  • Alexa

    Alexa

  • SmartThings

    SmartThings

  • Ring

    Ring

  • Wink

    Wink

  • Vera

    Vera

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    914S
  • Product Type
    Deadbolt
  • Style
    Contemporary
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    No
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    2
  • Assembled Height
    2-29/32
  • Assembled Width
    2-11/16
  • Assembled Length
    1-1/16
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only
  • Voice Control Enabled
    Google Assistant via Wink hub ; Google Assistant via Samsung SmartThings ; Alexa via Wink Hub ; Alexa via Samsung SmartThings
  • Lock Technology
    Z-Wave500
  • Hub Required
    Hub required for remote access
  • Electronic Works With
    SmartThings ; Wink ; Vera ; Alexa ; Ring
  • # Of Codes
    0
  • Battery Type Required
    4 AA, included

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
