Home / Products / Levers / Sedona Lever - Bed/Bath

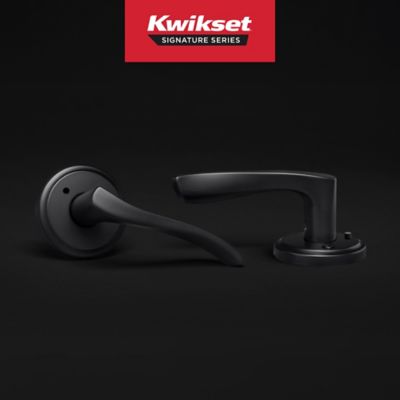

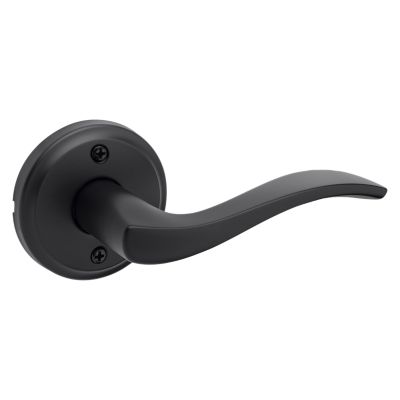

Sedona Lever - Bed/Bath

730SEL 514

Features

  • Designer style and superior security with this Kwikset Signature Series™ product

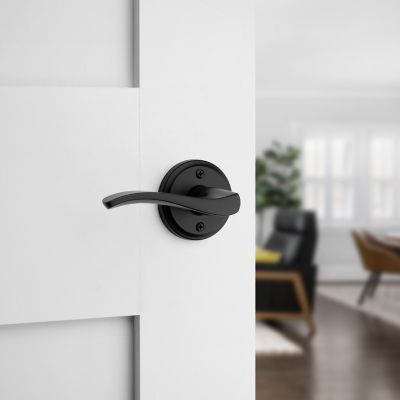

  • For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom

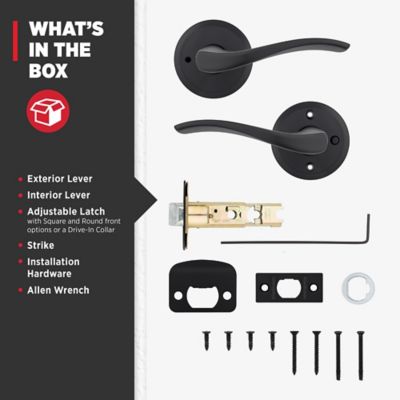

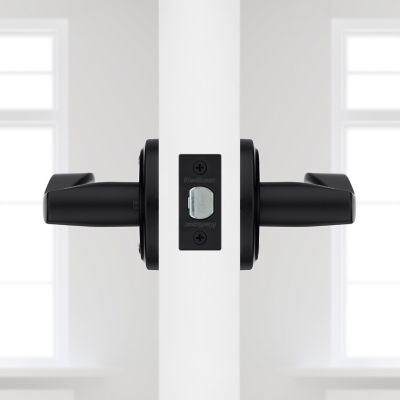

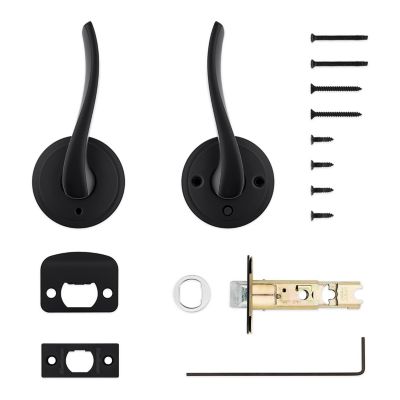

  • Latch has 2 interchangeable faceplates; round corner and square corner
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Locking mechanism functions by pressing the push button on the interior of the lock

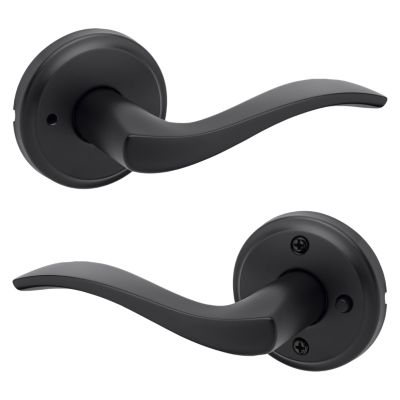

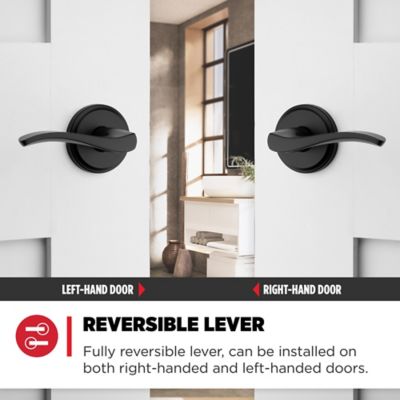

  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
  • Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Similar Products

Tustin Lever - Bed/Bath

8 Finishes

Tustin Lever - Bed/Bath
Signature Series
Layton Lever - Bed/Bath - Safe Lock

3 Finishes

Layton Lever - Bed/Bath - Safe Lock
Safe Lock
Perth Lever - Bed/Bath

2 Finishes

Perth Lever - Bed/Bath
Signature Series
Perth Lever (Square) - Bed/Bath

2 Finishes

Perth Lever (Square) - Bed/Bath
Signature Series

Specifications

All Measurements are in Inches

  • Kwikset Family
    Sedona
  • Product Type
    Lever
  • Style

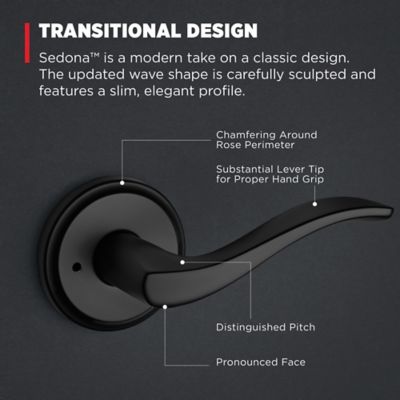

    Transitional
  • Entry Has SmartKey?
    No
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 2
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4

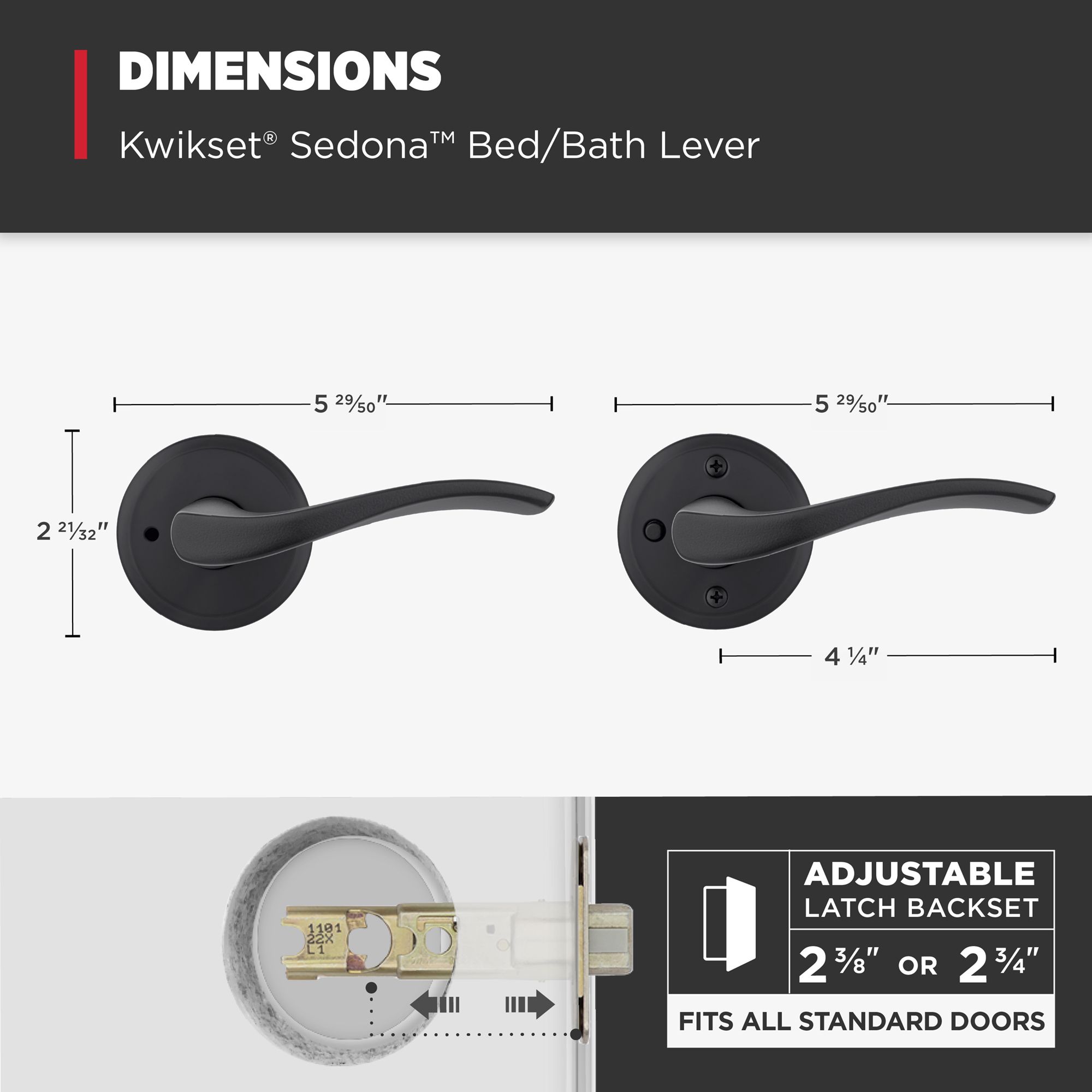

  • Assembled Height
    2-11/16
  • Assembled Width
    4-7/32
  • Assembled Length
    2-1/2
  • Lever Handling
    Reversible
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
