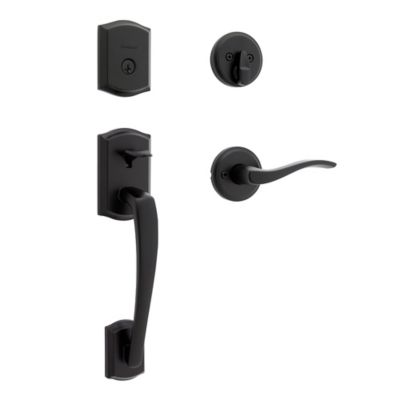

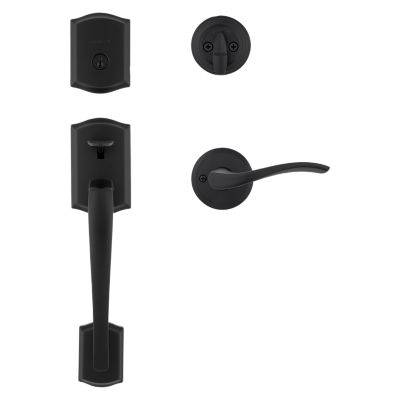

Prescott Handleset with Sedona Lever - Deadbolt Keyed One Side - featuring SmartKey

818PTHXSEL 514 SMT

Enlarge Photo
Product Image - 818pthxsel-514-smt_sbs1
Product EnhancedGalleryImage - kw_mpp_genericgallery2_hdlesetlever
Product EnhancedGalleryImage - kw_mpp_genericgallery3_handleset
Product EnhancedGalleryImage - kw_mpp_genericgallery4_handleset
Product EnhancedGalleryImage - kw_mpp_genericgallery5_handleset
Product EnhancedGalleryImage - kw_mpp_genericgallery00_placeholder
Product clippedImage - 818pthxsel-514-smt_sbs1
Product clippedImage - 818pthxsel-514-smt_sbs2
Function:

Keyed One Side

  • SmartKey
  • Microban

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

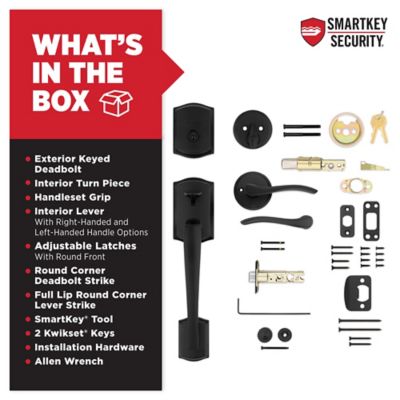

  • Comes with 2 keys
  • Latch has 2 interchangeable faceplates; round corner and square corner
  • Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
  • Certified Highest Residential Security, Durability and Finish - ANSI/BHMA Grade AAA
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes full lip round strike
  • Includes round deadbolt strike

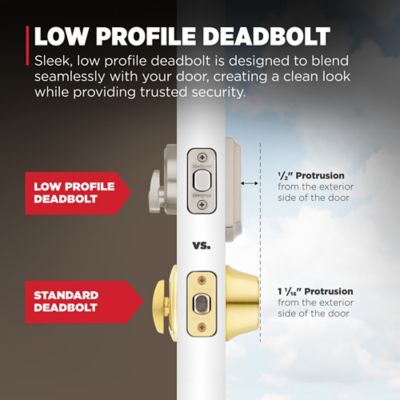

  • 1 inch deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock

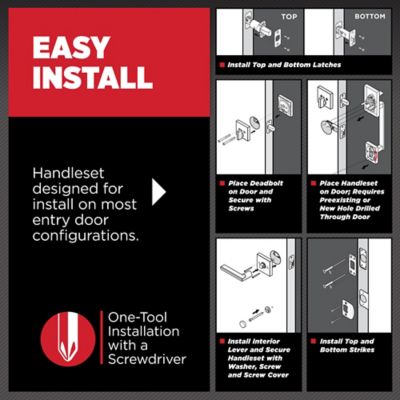

  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Similar Products

Hawthorne Handleset with Trafford Lever - Deadbolt Keyed One Side - featuring SmartKey

2 Finishes

Hawthorne Handleset with Trafford Lever - Deadbolt Keyed One Side - featuring SmartKey
Signature Series

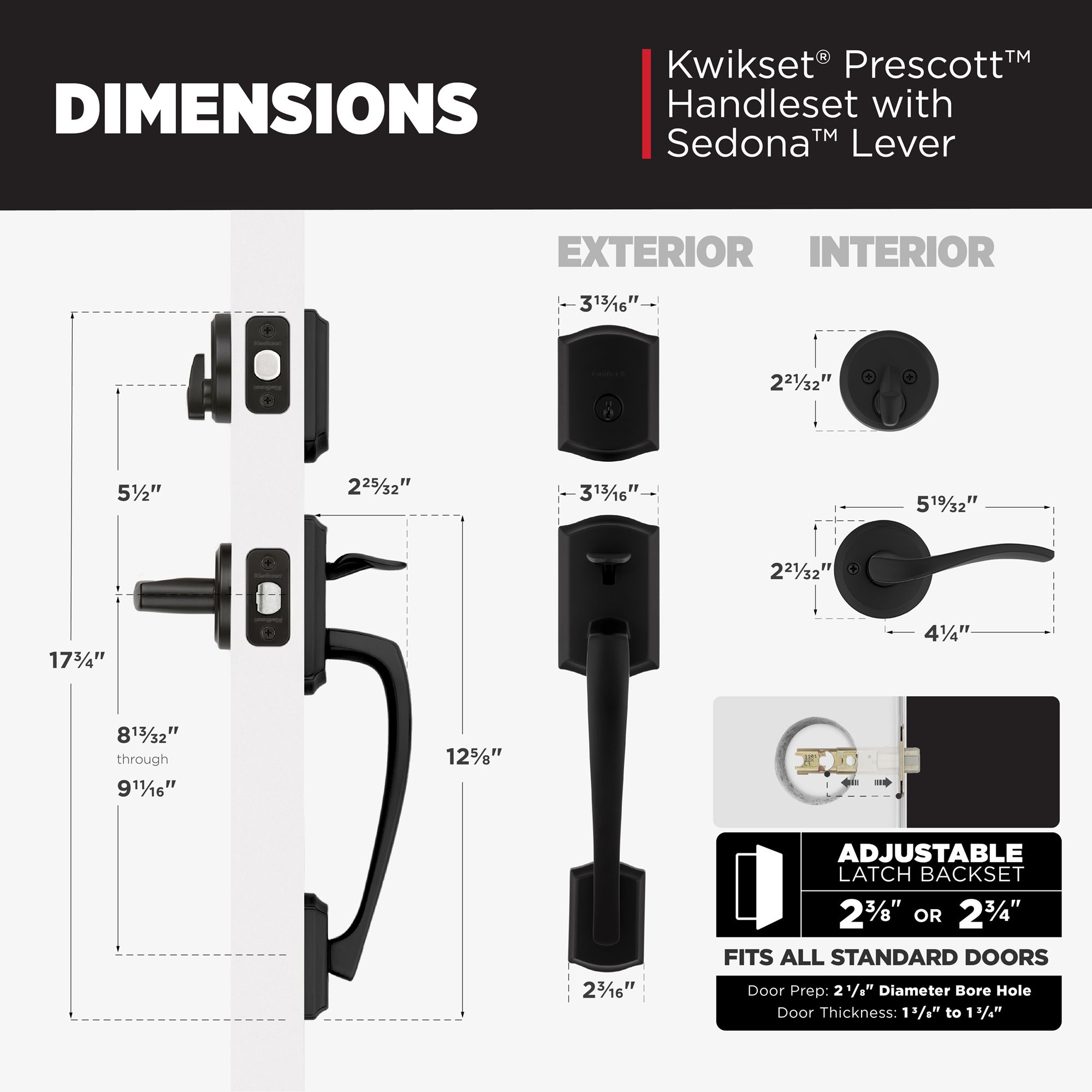

Specifications

All Measurements are in Inches

  • Kwikset Family
    Prescott
  • Product Type
    Handleset
  • Style
    Traditional
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    AAA (Deadbolt Only)
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/4
  • Max Door Thickness
    2
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No
