Palmina Push Button Lever - UL - Bed/Bath

408PLL 26D UL

Enlarge Photo

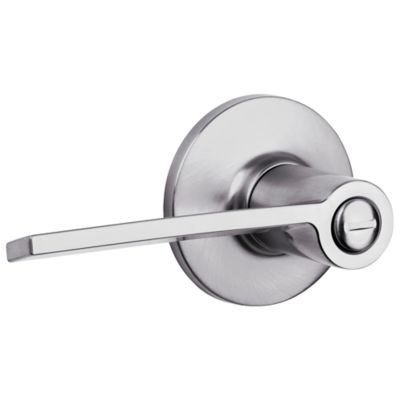

Product Image - kw_pl-lv-priv-26d-ex
Product clippedImage - kw_pl-lv-priv-26d-ex

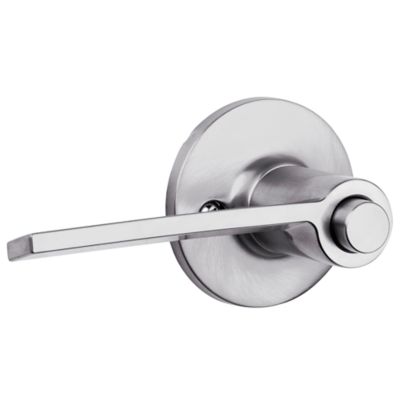

Product clippedImage - kw_pl-lv-priv-26d-int

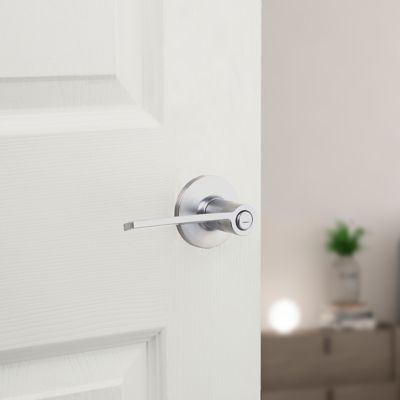

Product Vignette - kw_pl-lv-priv-26d-v1

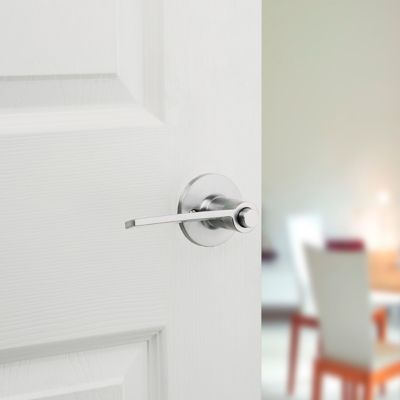

Product Vignette - kw_pl-lv-priv-26d-v2
Function:

Bed and Bath

Features

  • For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom
  • Latch has round corner faceplate
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Locking mechanism functions by pressing the push button on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches

  • Kwikset Family
    Palmina
  • Product Type
    Lever
  • Style
    Contemporary
  • Entry Has SmartKey?
    No
  • Has Microban?
    No
  • ANSI Grade
    Grade 2
  • UL Time Rating
    3 hr
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-9/16
  • Assembled Width
    3-3/4
  • Assembled Length
    1-24/25
  • Lever Handling
    Reversible
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No
