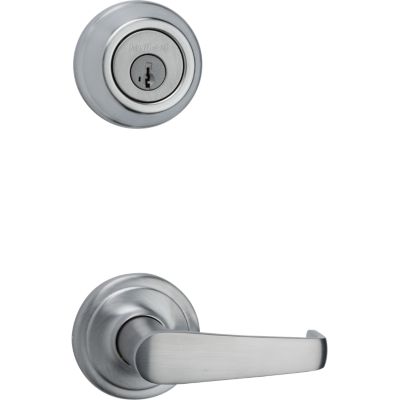

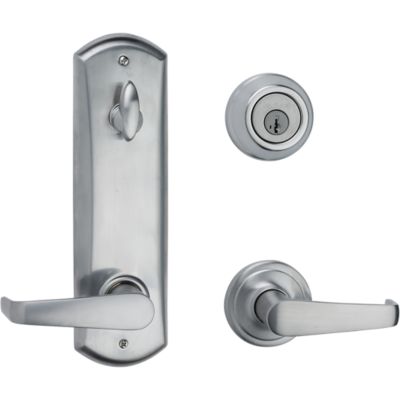

Metal Interconnect Levers - Key Control Deadbolt with Kingston Passage Lever
508KNL 26D
Features
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Latch has round corner faceplate
- Meets ADA/ANSI A117.1 requirements
- ANSI/BHMA grade 3 certified
- Latch has 2 3/4 in. backset
- Includes wide faced starike number 3846
- 1 in. deadbolt throw

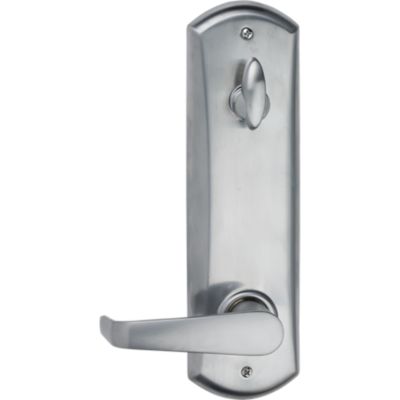

- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyKingston
-
Product TypeLever
-
StyleTraditional
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeGrade 3
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2.625
-
Assembled Width3.84
-
Assembled Length2-31/32
-
Lever HandlingReversible
-
Latch Backset Size2-3/4
-
Cross Bore2-1/8"
-
ADA CompliantYes
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
