Keyed Entry

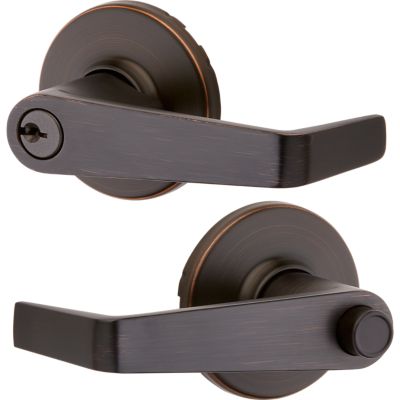

Kingston Push Button Lever - Keyed - with Pin & Tumbler
756KNL 11P
Features
- For use on exterior doors where keyed entry and security is needed
- Comes with 2 keys
- Latch is 20 minute fire rated with square corner face
- Meets ADA/ANSI A117.1 requirements
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

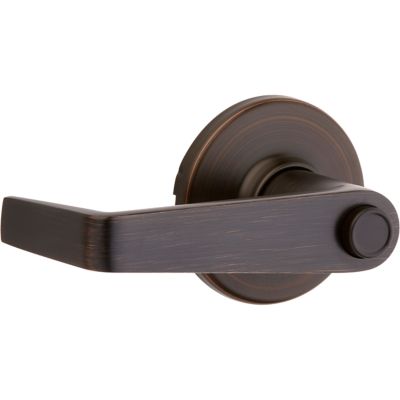

- Locking mechanism functions by pressing the push button on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyKingston
-
Product TypeLever
-
StyleTraditional
-
Entry Has SmartKey?No
-
ANSI GradeGrade 2
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2.625
-
Assembled Width3.84
-
Assembled Length2-2/5
-
Lever HandlingReversible
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantYes
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
