Home / Products / Deadbolts / Gatelatch - Keyed One Side - featuring SmartKey

Gatelatch - Keyed One Side - featuring SmartKey

598 5 SMT

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Deadbolt operated by key outside and thumb turn inside
  • Comes with 2 keys
  • Deadbolt Latch has square corner faceplate
  • ANSI/BHMA grade 2 certified
  • Latch has 2 3/8 in. backset
  • 1 inch deadbolt throw

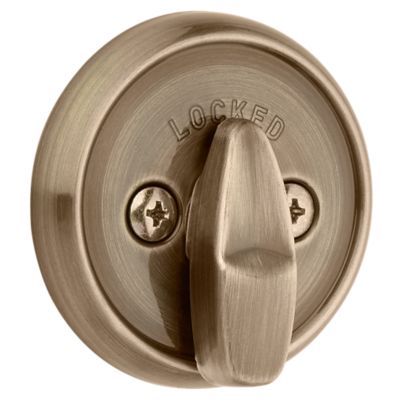

  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Similar Products

660 Deadbolt - Keyed One Side - featuring SmartKey

8 Finishes

660 Deadbolt - Keyed One Side - featuring SmartKey
Kwikset Series
660 Deadbolt - Keyed One Side - with Pin & Tumbler

7 Finishes

660 Deadbolt - Keyed One Side - with Pin & Tumbler
Kwikset Series
980 Deadbolt - Keyed One Side - with Pin & Tumbler

10 Finishes

980 Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
980 Deadbolt - Keyed One Side - featuring SmartKey

11 Finishes

980 Deadbolt - Keyed One Side - featuring SmartKey
Signature Series

Specifications

All Measurements are in Inches

  • Kwikset Family
    Gatelatch
  • Product Type
    Deadbolt
  • Style
    Traditional
  • Entry Has SmartKey?
    Yes
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Latch Backset Size
    2-3/8
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
