Downtown Low Profile Contemporary Deadbolt

Downtown, a square slim deadbolt is the latest contemporary design and a perfect accent for the style-conscious consumer. 50% less protrusion than standard deadbolts.

Smartkey Securit BHMA Certified

Downtown Deadbolt - Keyed One Side - featuring SmartKey

258 SQT 514 SMT

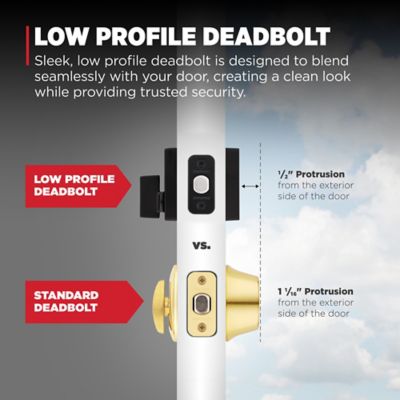

Less is More

Uptown and Downtown are 50% slimmer than most deadbolts on the market. Their modern approach to design —less is more— contributes to the overall appeal of the entryway. Use the button below to compare the difference in size.

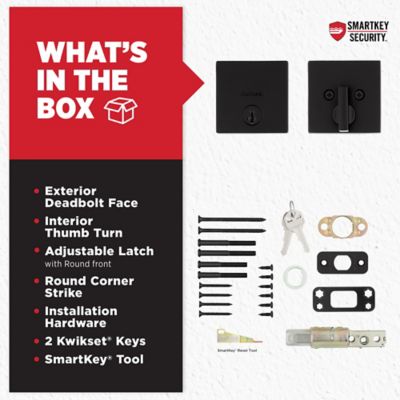

What's in the Box

Easily installs with just a screwdriver.

Deadbolt Exterior
Deadbolt Interior
Adjustable Latch
Round & Square Faceplates
Round & Square Strikes
Drive-in Collar
SmartKey Learn Tool
Two (2) Keys
Mounting Hardware
Installation Instructions

Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Deadbolt operated by key outside and thumb turn inside
  • Comes with 2 keys
  • Deadbolt Latch has 3 interchangable faceplates - round corner, square corner, and drive-in collar
  • Certified Highest Residential Security, Durability and Finish - ANSI/BHMA Grade AAA
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 inch deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
  • Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Similar Products

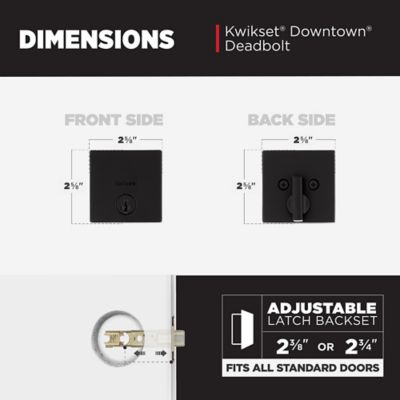

Specifications

All Measurements are in Inches

  • Kwikset Family
    Downtown
  • Product Type
    Deadbolt
  • Style
    Contemporary
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    AAA
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Assembled Length
    1/2
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
