Keyed Entry

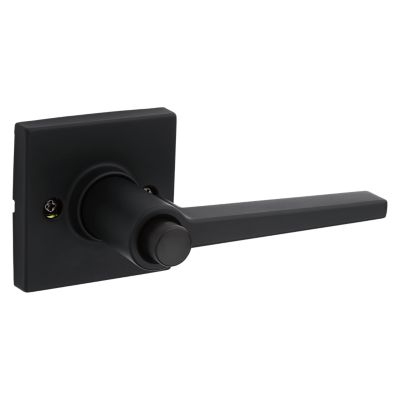

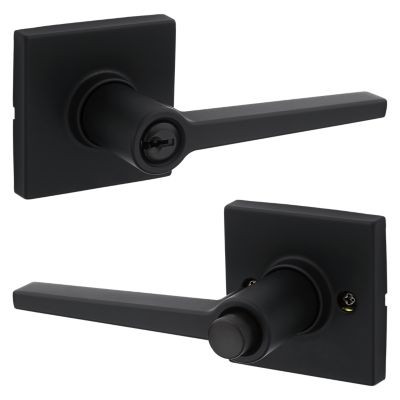

Daylon Lever (Square) - Keyed - with Pin & Tumbler - Safe Lock
SL6000DAL SQT 514 RCAL RCS
Features
- Providing you with quality, dependability, and security with this Safe Lock product
- For use on exterior doors where keyed entry and security is needed
- Latch has 2 interchangeable faceplates; round corner and square corner
- Meets ADA/ANSI A117.1 requirements
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
3 Finishes
Winston Lever - Keyed - with Pin & Tumbler - Safe Lock
Safe Lock
2 Finishes
Grapevine Lever - Keyed - with Pin & Tumbler - Safe Lock
Safe Lock
3 Finishes
Winston Lever (Square) - Keyed - with Pin & Tumbler - Safe Lock
Safe Lock
3 Finishes
Reminy Lever (Round) - Keyed - with Pin & Tumbler - Safe Lock
Safe Lock
Specifications
All Measurements are in Inches
-
Kwikset FamilyDaylon
-
Product TypeLever
-
StyleTraditional
-
Has Microban?No
-
ANSI GradeGrade 3
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-9/16
-
Assembled Width2-9/16
-
Assembled Length2-3/8
-
Lever HandlingReversible
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantYes
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
