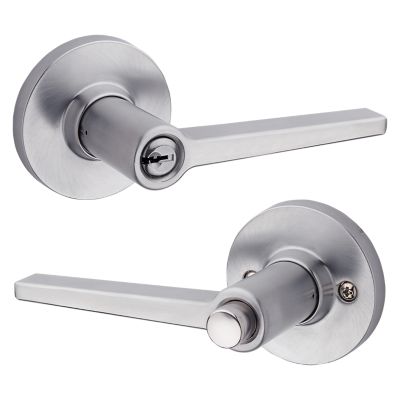

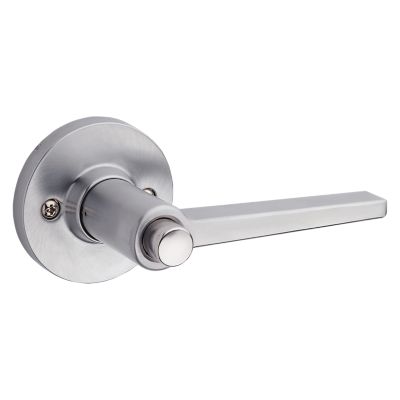

Daylon Lever (Round) - Keyed - with Pin & Tumbler - Safe Lock

SL6000DAL RDT 26D RCAL RCS

Features

  • Providing you with quality, dependability, and security with this Safe Lock product
  • For use on exterior doors where keyed entry and security is needed
  • Comes with 1 key
  • Latch has 2 interchangeable faceplates; round corner and square corner
  • Meets ADA/ANSI A117.1 requirements
  • ANSI/BHMA grade 3 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Locking mechanism functions by pressing the push button on the interior of the lock
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches

  • Kwikset Family
    Daylon
  • Product Type
    Lever
  • Style
    Contemporary
  • Entry Has SmartKey?
    No
  • Has Microban?
    No
  • ANSI Grade
    Grade 3
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-9/16
  • Assembled Width
    2-9/16
  • Assembled Length
    3-5/8
  • Lever Handling
    Reversible
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes
