Bed and Bath

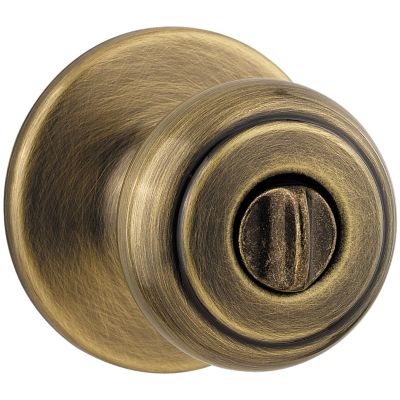

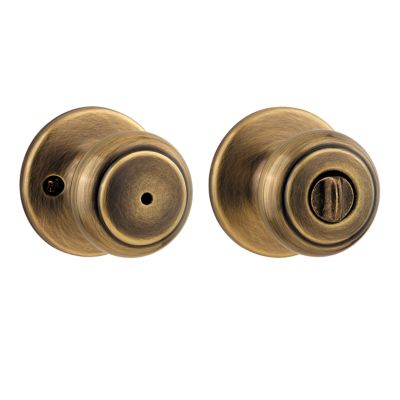

Cove Knob - Bed/Bath
300CV 5
Features
- For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom
- Universal handing; fits both right handed and left handed doors
- Latch has round corner faceplate
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyCove
-
Product TypeKnob
-
StyleTraditional
-
ANSI GradeGrade 3
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-5/8
-
Assembled Width2-5/8
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
