Keyed One Side

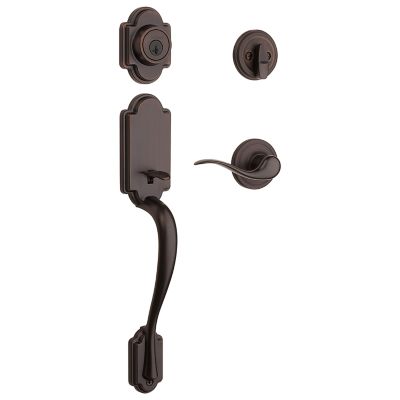

Arlington Handleset with Tustin Lever - Deadbolt Keyed One Side - featuring SmartKey
800ANXTNL 11P SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features
- Designer style and superior security with this Kwikset Signature Series™ product
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Fully reversible interior lever; fits both right handed and left handed doors
- Latch has 2 interchangeable faceplates; round corner and square corner
- Handleset Deadbolt ANSI/BHMA Grade 1 Certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes both deadbolt and full lip round strikes
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyArlington
-
Product TypeHandleset
-
StyleTraditional
-
Entry Has SmartKey?Yes
-
Has Microban?Yes
-
ANSI GradeHandleset Grade 1
-
UL Time RatingNot rated
-
Min Door Thickness1-3/4
-
Max Door Thickness1-3/4
-
Assembled Height19-1/16
-
Assembled Width2-3/4
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
