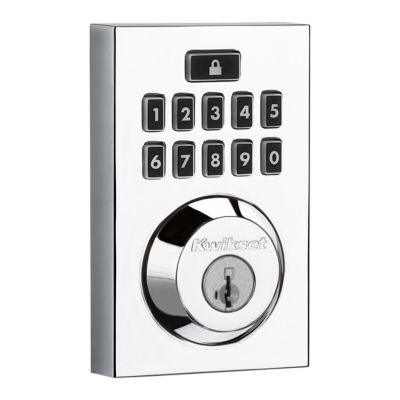

914 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology

914CNT ZB 26

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Comes with 2 keys
  • Deadbolt Latch is 20 minute fire rated with round corner face
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 in. deadbolt throw
  • 1 inch deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Requires 4 AA batteries, included
  • Keypad stays lit for 30 seconds after inactivity
  • Featuring Home Connect™ technology, your electronic lock can now interface with security and home automation systems using a ZigBee radio that connects to an in-home hub, such as a wireless router

Compatible Technologies

  • Alexa

    Alexa

  • SmartThings

    SmartThings

Similar Products

910 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology

4 Finishes

910 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology
910 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology

5 Finishes

910 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
914 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology

4 Finishes

914 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
916 Smartcode Contemporary Electronic Deadbolt with Z-Wave Technology

4 Finishes

916 Smartcode Contemporary Electronic Deadbolt with Z-Wave Technology
Halo Touchscreen Wi-Fi Enabled Smart Lock

4 Finishes

Halo Touchscreen Wi-Fi Enabled Smart Lock
916 Smartcode Contemporary Electronic Deadbolt with Zigbee Technology

4 Finishes

916 Smartcode Contemporary Electronic Deadbolt with Zigbee Technology
Home Connect 620 Contemporary Keypad Connected Smart Lock with Z-Wave Technology

4 Finishes

Home Connect 620 Contemporary Keypad Connected Smart Lock with Z-Wave Technology

Specifications

All Measurements are in Inches

  • Kwikset Family
    SmartCode Deadbolts Touchpad with Home Connect
  • Product Type
    Deadbolt
  • Style
    Contemporary
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    No
  • ANSI Grade
    Grade 2
  • UL Time Rating
    20 min
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    2
  • Assembled Height
    4-7/16
  • Assembled Width
    2-25/32
  • Assembled Length
    1-3/16
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only
  • Voice Control Enabled
    Alexa via Samsung SmartThings ; Google Assistant via Samsung SmartThings
  • Lock Technology
    Zigbee
  • Hub Required
    Requires Smart Hub
  • Electronic Works With
    SmartThings ; Alexa
  • # Of Codes
    30
  • Battery Type Required
    4 AA, included

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
