Home / Products / Deadbolts / 785 Deadbolt - Keyed Both Sides - with Pin & Tumbler

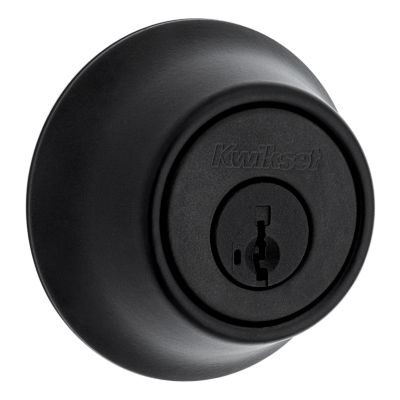

785 Deadbolt - Keyed Both Sides - with Pin & Tumbler

785 514

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Deadbolt operated by key on both sides
  • Comes with 2 keys
  • Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
  • ANSI/BHMA grade 2 certified
  • 1 inch deadbolt throw
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
  • Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    780 Deadbolt Series
  • Product Type
    Deadbolt
  • Style
    Traditional
  • Entry Has SmartKey?
    No
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 2
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Reviews and Q&As
