Keyed One Side

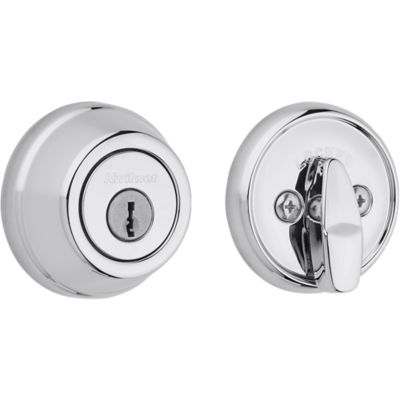

780 Deadbolt - Keyed One Side - with Pin & Tumbler
780 26
Features
- Designer style and superior security with this Kwikset Signature Series™ product
- For use on exterior doors where keyed entry and security is needed

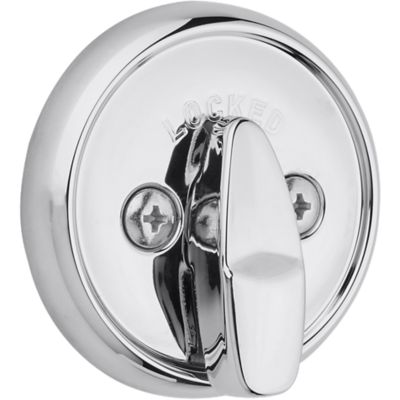

- Deadbolt operated by key outside and thumb turn inside
- Comes with 2 keys
- Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
- ANSI/BHMA grade 2 certified
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset Family780 Deadbolt Series
-
Product TypeDeadbolt
-
StyleTraditional
-
Entry Has SmartKey?No
-
Has Microban?No
-
ANSI GradeGrade 2
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-5/8
-
Assembled Width2-5/8
-
Assembled Length1-1/8
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
