663 One Sided Deadbolt - Thumb Turn Only

663 26D

Features

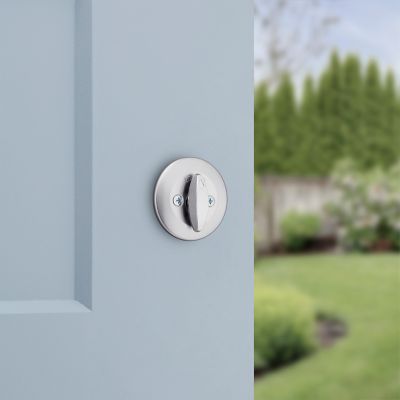

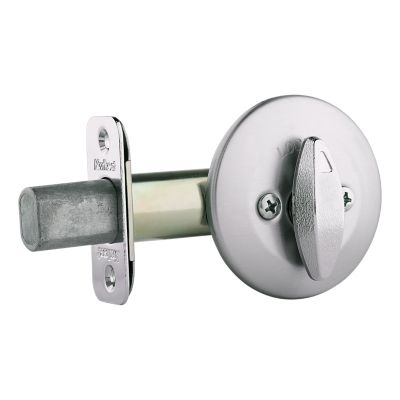

  • Deadbolt operated by thumb turn on interior, no trim on exterior.
  • Deadbolt Latch has round corner faceplate
  • ANSI/BHMA grade 3 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • 1 inch deadbolt throw

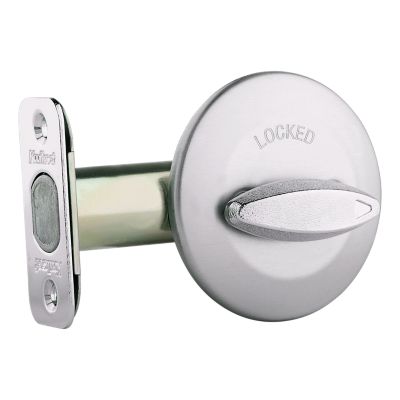

  • Locking mechanism functions with turn piece on the interior of the lock

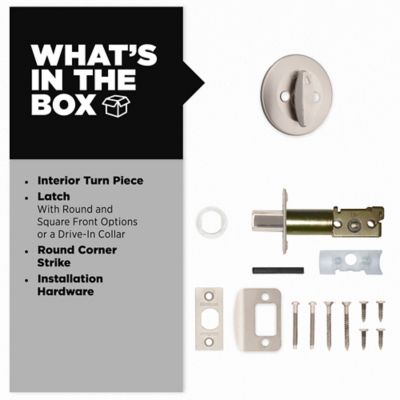

  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches

  • Kwikset Family
    600 Deadbolt Series
  • Product Type
    Deadbolt
  • Style
    Traditional
  • Has Microban?
    No
  • ANSI Grade
    Grade 3
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4

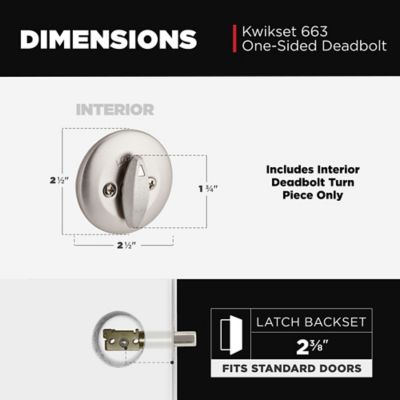

  • Assembled Height
    2-1/2
  • Assembled Width
    2-1/2
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
