Keyed One Side

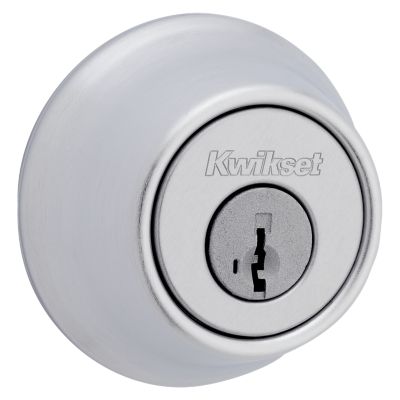

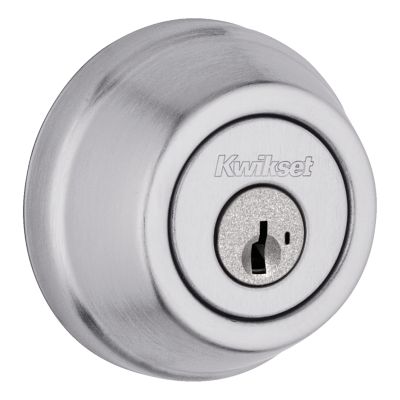

660 Mobile Home Deadbolt - Keyed One Side - with Pin & Tumbler
660M 26D
Features
- For use on exterior doors where keyed entry and security is needed

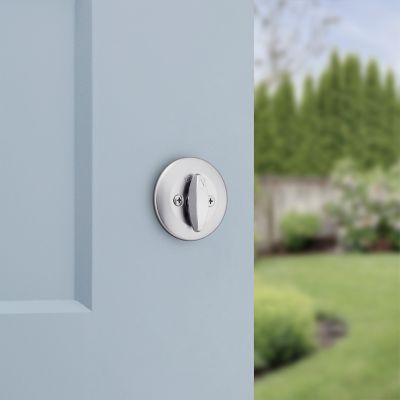

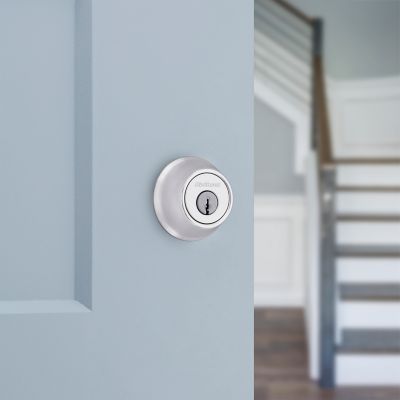

- Deadbolt operated by key outside and thumb turn inside
- Comes with 2 keys
- Deadbolt drive-in latch to be installed in 1" cross bore hole without faceplate
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset Family600 Deadbolt Series
-
Product TypeDeadbolt
-
StyleTraditional
-
Entry Has SmartKey?No
-
ANSI GradeGrade 3
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-7/16
-
Assembled Width2-7/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
