Keyed One Side

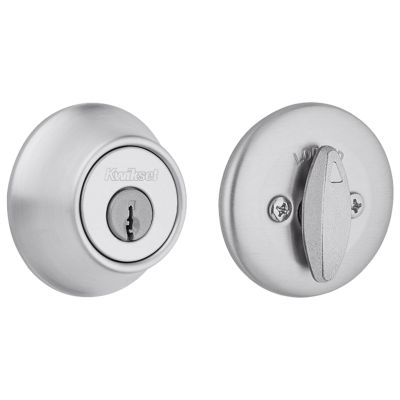

660 Deadbolt - Keyed One Side - with Pin & Tumbler
660 26D
Features

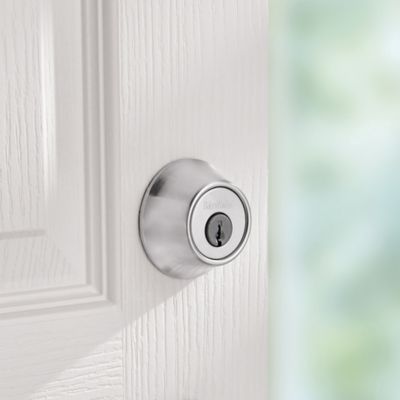

- For use on exterior doors where keyed entry and security is needed
- Deadbolt operated by key outside and thumb turn inside
- Comes with 2 keys
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- 1 inch deadbolt throw

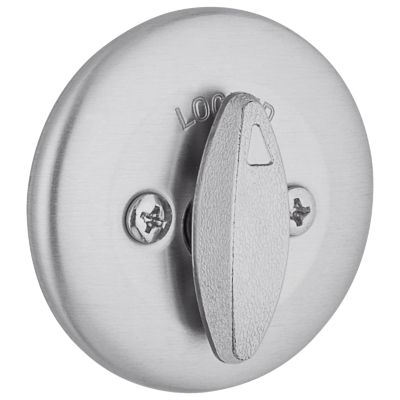

- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
4 Finishes
Gatelatch - Keyed One Side - featuring SmartKey
Signature Series
2 Finishes
660 Mobile Home Deadbolt - Keyed One Side - with Pin & Tumbler
Kwikset Series
8 Finishes
660 Deadbolt - Keyed One Side - featuring SmartKey
Kwikset Series
11 Finishes
980 Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
10 Finishes
980 Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
3 Finishes
Deadbolt - Single Cylinder - Safe Lock
Safe Lock
2 Finishes
Deadbolt - One-Sided - Safe Lock
Safe Lock
2 Finishes
Deadbolt - Double Cylinder - Safe Lock
Safe Lock
10 Finishes
780 Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
9 Finishes
780 Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
Specifications
All Measurements are in Inches
-
Kwikset Family600 Deadbolt Series
-
Product TypeDeadbolt
-
StyleTraditional
-
Entry Has SmartKey?No
-
Has Microban?No
-
ANSI GradeGrade 3
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-7/16
-
Assembled Width2-7/16
-
Assembled Length1-1/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
