Keyed One Side

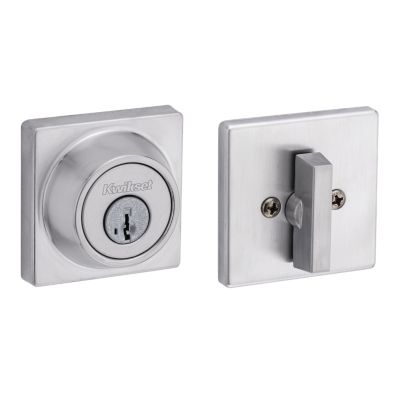

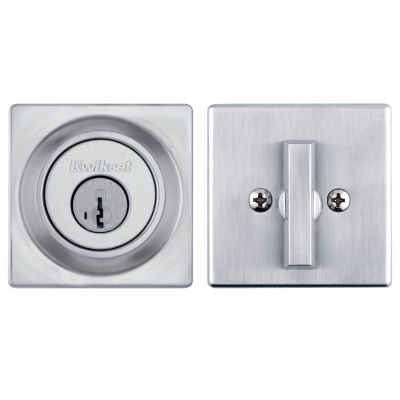

660 Contemporary Square Deadbolt - Keyed One Side - Featuring SmartKey
660SQT 26D SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features

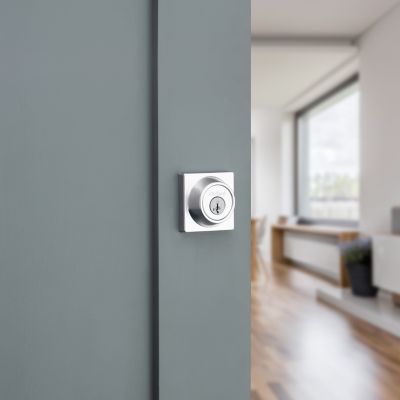

- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

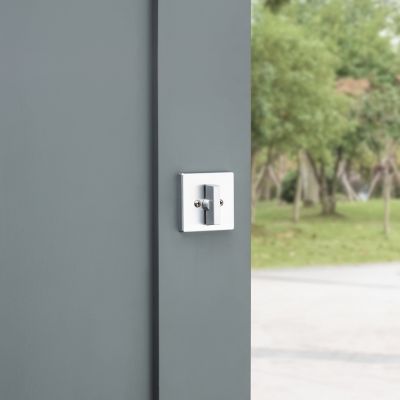

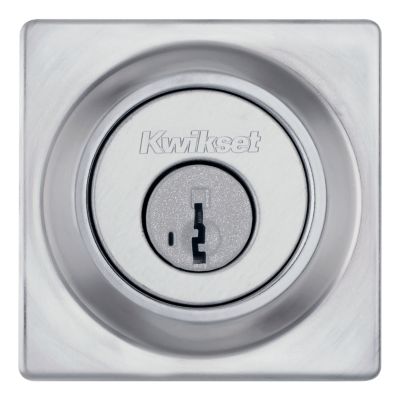

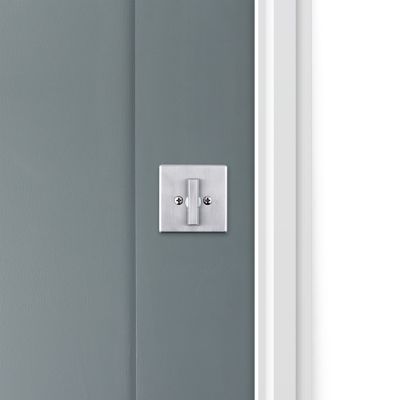

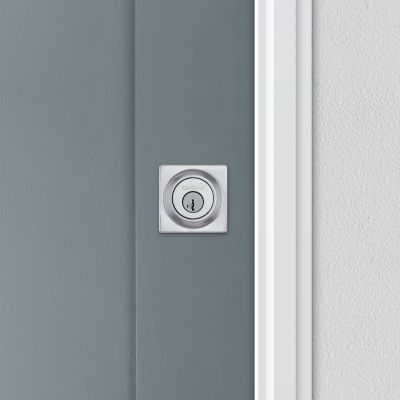

- Deadbolt operated by key outside and thumb turn inside
- Comes with 2 keys
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 inch deadbolt throw

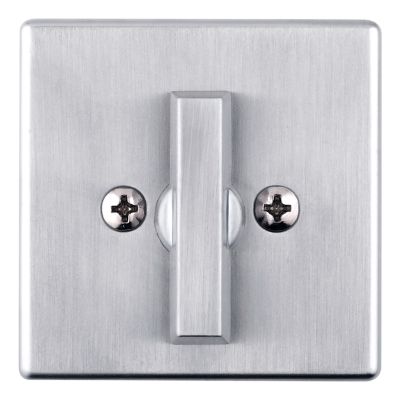

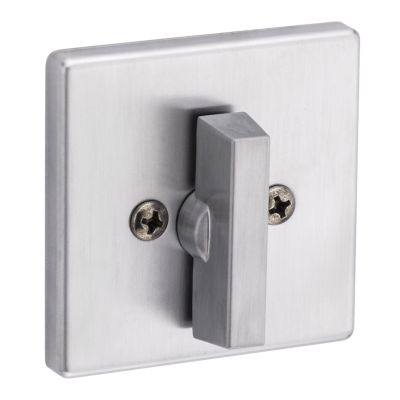

- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Similar Products
5 Finishes
158 Square Deadbolt - Keyed One Side - with Pin & Tumbler
Signature Series
6 Finishes
158 Square Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
Downtown Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
4 Finishes
660 Contemporary Round Deadbolt - Keyed One Side - featuring SmartKey
Kwikset Series
6 Finishes
Uptown Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
6 Finishes
158 Deadbolt - Keyed One Side - featuring SmartKey
Signature Series
Specifications
All Measurements are in Inches
-
Kwikset Family660 Contemporary Deadbolt Series
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeGrade 3
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-7/16
-
Assembled Width2-7/16
-
Assembled Length1-1/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
