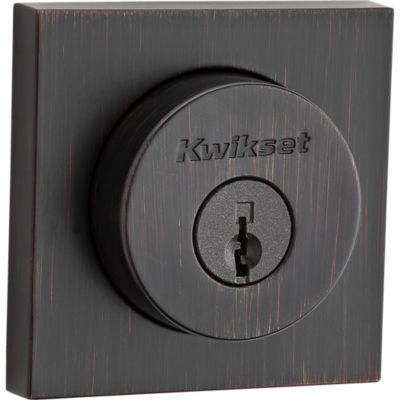

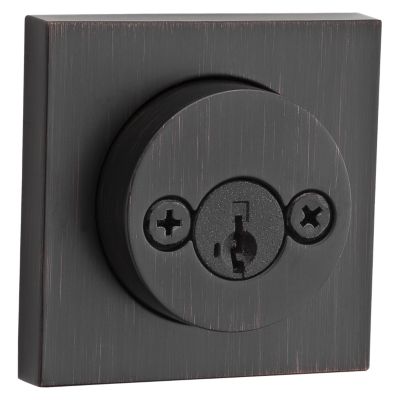

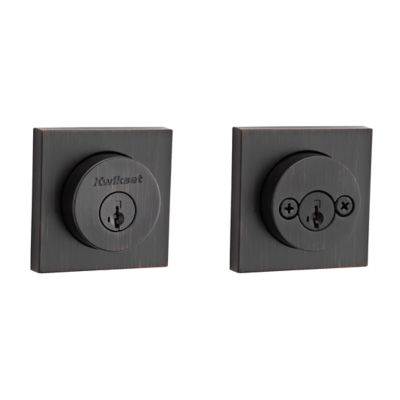

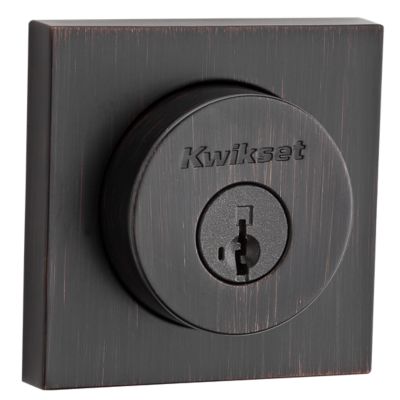

159 Square Deadbolt - Keyed Both Sides - featuring SmartKey

Contemporary Halifax Deadbolt

159 SQT 11P SMT

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Deadbolt operated by key on both sides
  • Comes with 2 keys
  • Latch has 3 interchangeable faceplates; round corner, square corner, and drive-in collar
  • ANSI/BHMA grade 2 certified
  • 1 inch deadbolt throw
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
  • Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

Similar Products

159 Square Deadbolt - Keyed Both Sides - with Pin & Tumbler

5 Finishes

159 Square Deadbolt - Keyed Both Sides - with Pin & Tumbler
Signature Series
159 Deadbolt - Keyed Both Sides - with Pin & Tumbler

5 Finishes

159 Deadbolt - Keyed Both Sides - with Pin & Tumbler
Signature Series

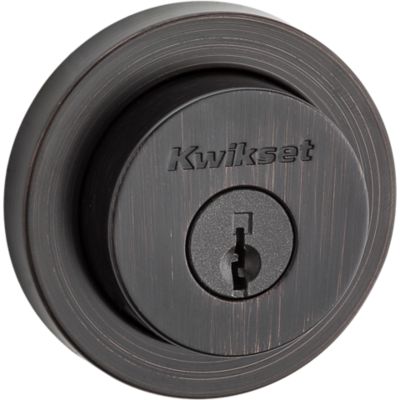

159 Round Deadbolt - Keyed Both Sides - featuring SmartKey

5 Finishes

159 Round Deadbolt - Keyed Both Sides - featuring SmartKey
Signature Series

Specifications

All Measurements are in Inches

  • Product Type
    Deadbolt
  • Style
    Contemporary
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 2
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-19/32
  • Assembled Width
    2-19/32
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
