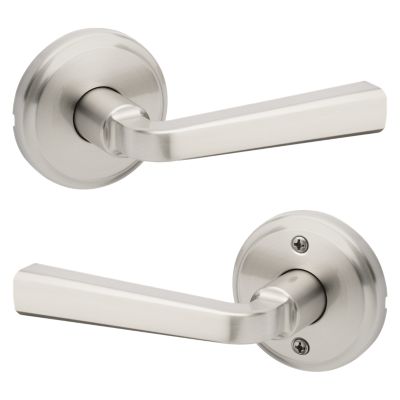

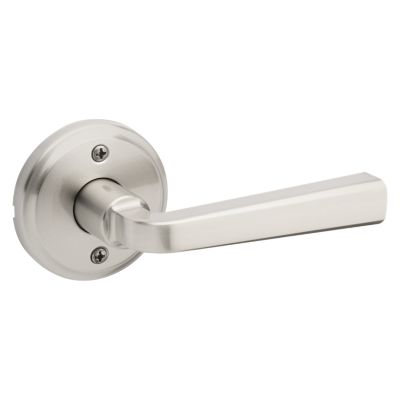

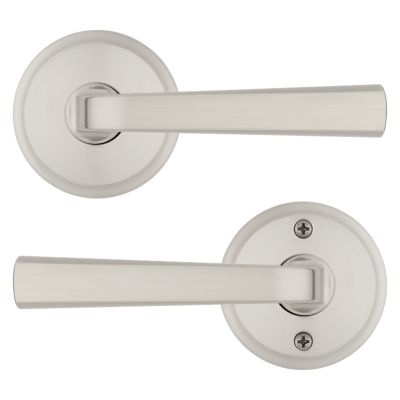

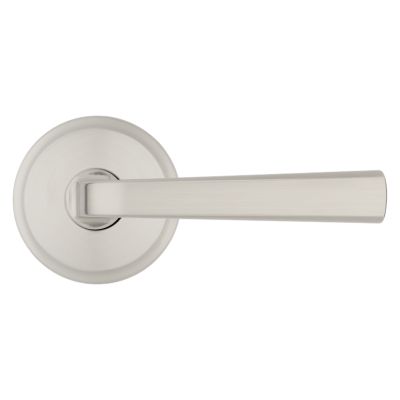

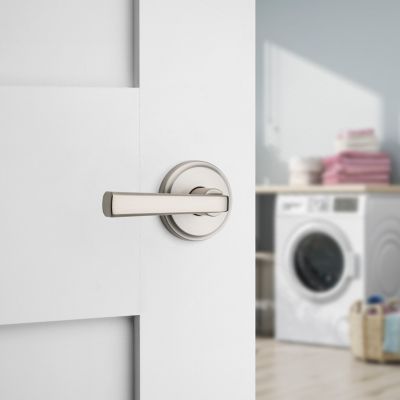

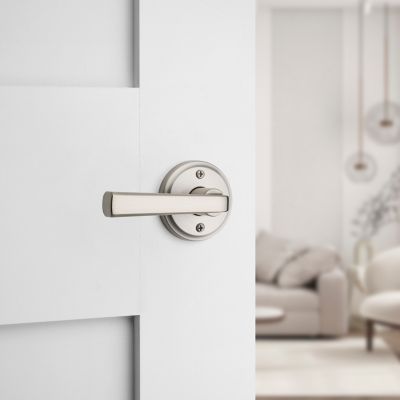

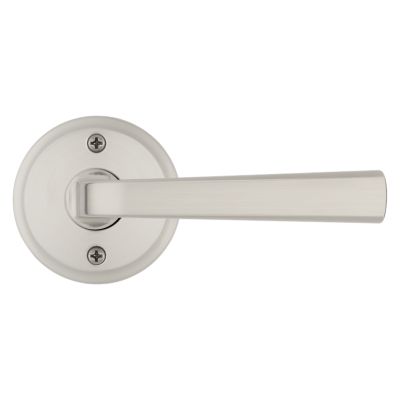

Trafford Lever - Hall/Closet
720TDL 15
Complete the Look
Features
- Designer style and superior security with this Kwikset Signature Series™ product

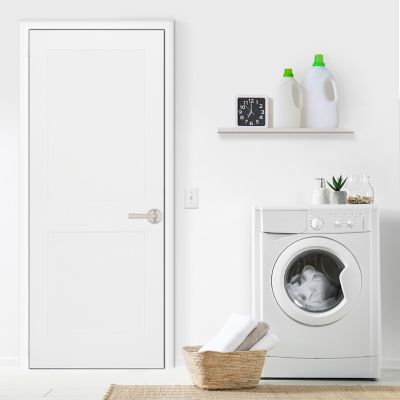

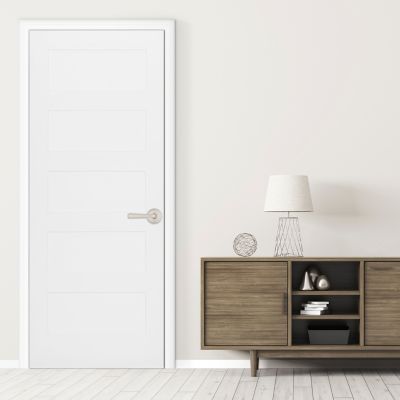

- For use on interior doors requiring no locking functionality, such as hallway or closet doors

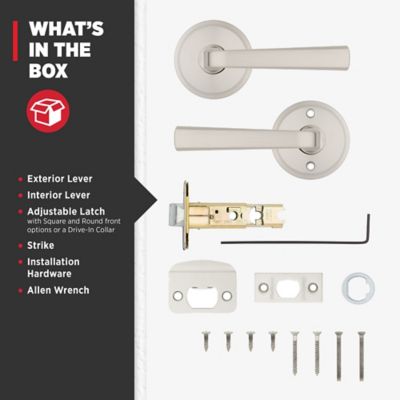

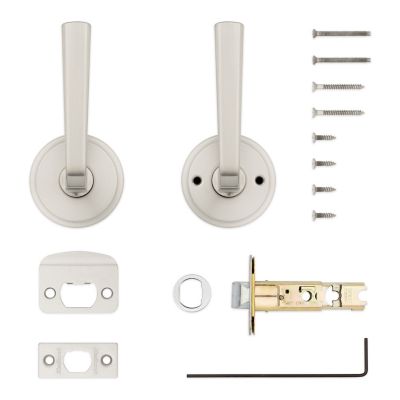

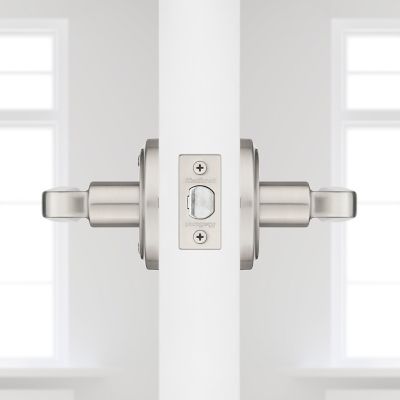

- Latch has 2 interchangeable faceplates; round corner and square corner
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

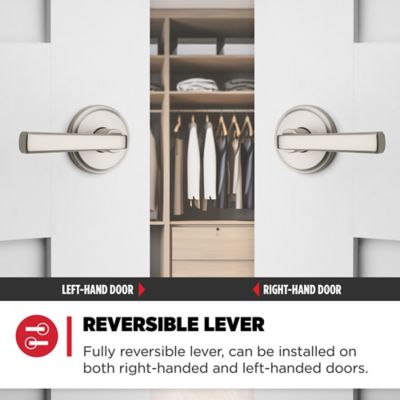

- Fully reversible lever, can be installed on both right handed and left handed doors

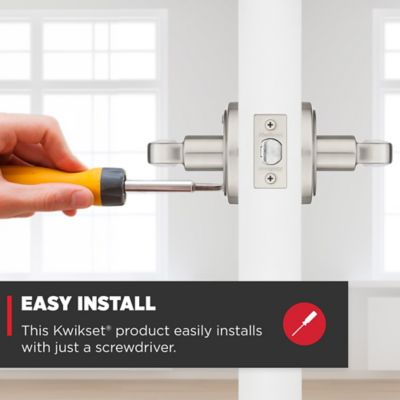

- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces

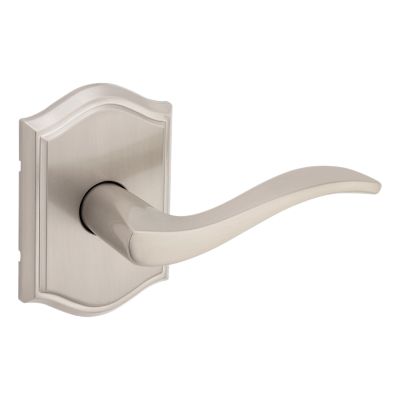

Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyTrafford
-
Product TypeLever
-

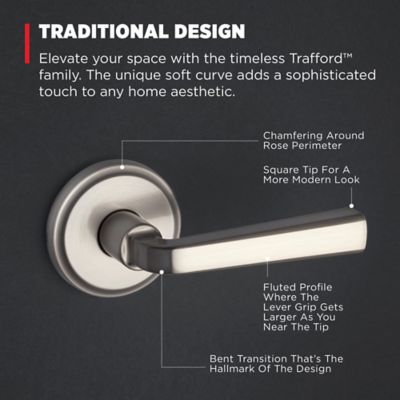

StyleTraditional
-
Has Microban?Yes
-
ANSI GradeGrade 2
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-

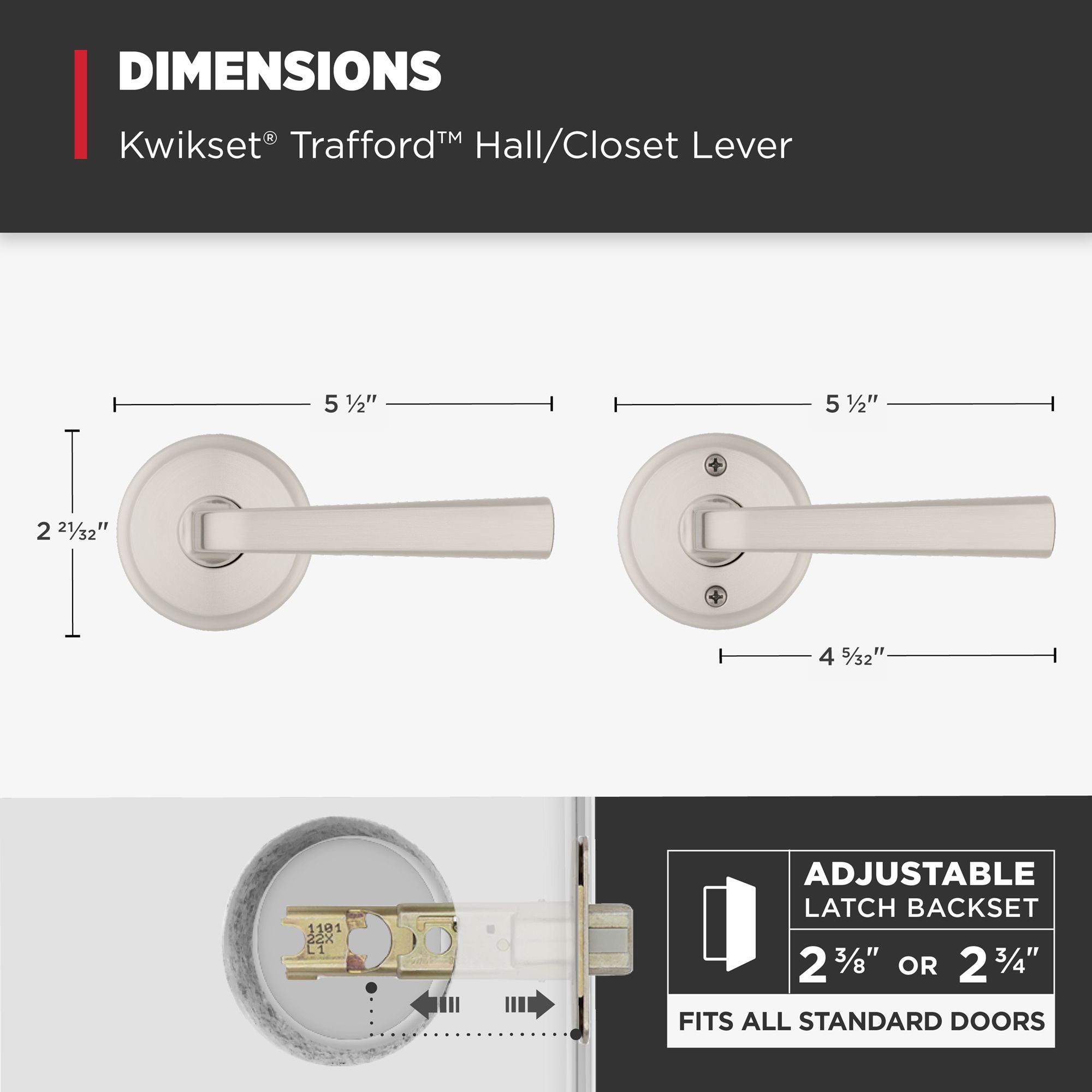

Assembled Height2-21/32
-
Assembled Width4-5/32
-
Assembled Length2-19/32
-
Lever HandlingReversible
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
