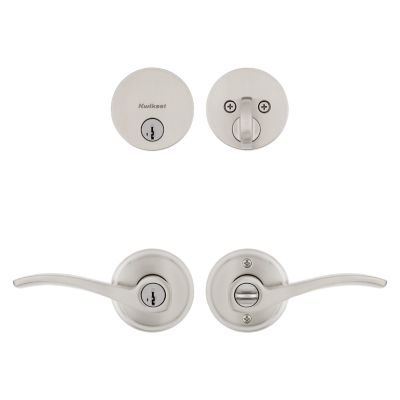

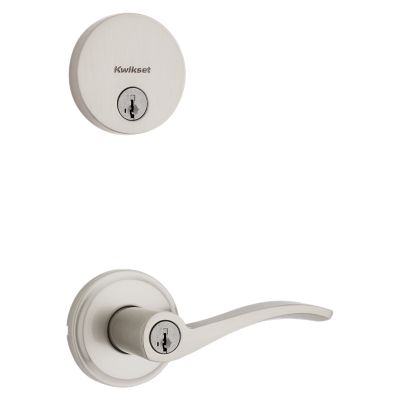

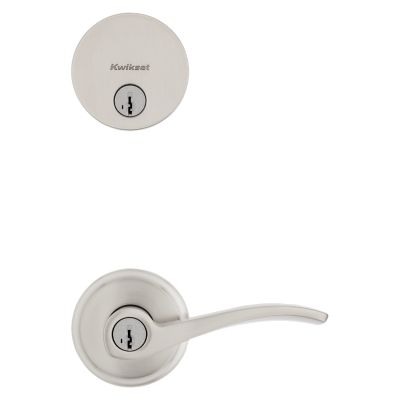

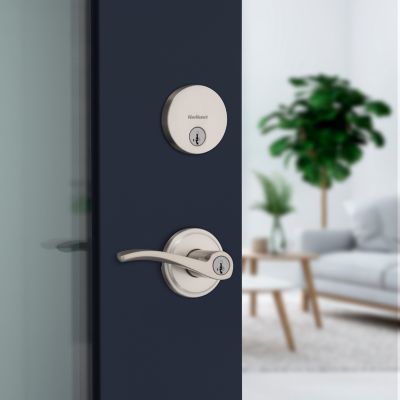

Sedona Security Set- Deadbolt Keyed One Side - featuring SmartKey

991SEL SMT 15

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Comes with 2 keys

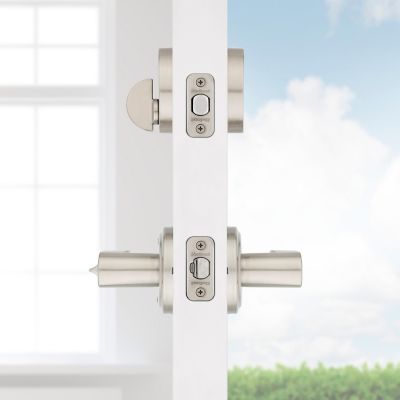

  • Latch has 2 interchangeable faceplates; round corner and square corner
  • Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 inch deadbolt throw

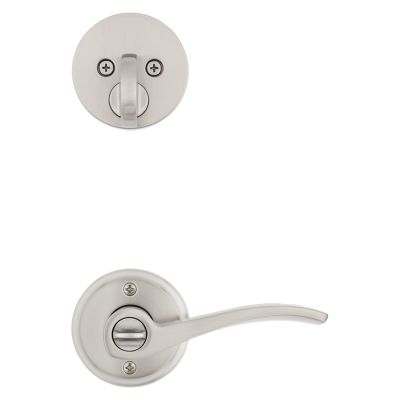

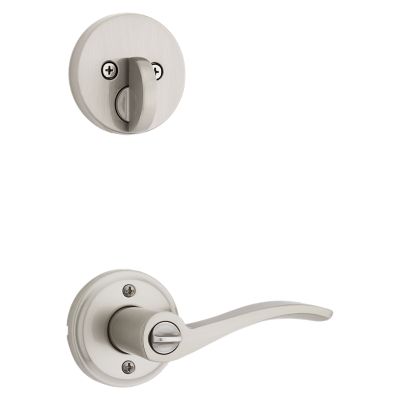

  • Locking mechanism functions with turn piece on the interior of the lock
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Similar Products

Tustin Security Set - Deadbolt Keyed One Side

3 Finishes

Tustin Security Set - Deadbolt Keyed One Side
Signature Series
Perth Security Set - Deadbolt Keyed One Side - featuring SmartKey

2 Finishes

Perth Security Set - Deadbolt Keyed One Side - featuring SmartKey
Signature Series

Specifications

All Measurements are in Inches

  • Kwikset Family
    Sedona
  • Product Type
    Lever
  • Style
    Transitional
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 2
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-11/16
  • Assembled Width
    4-7/32
  • Assembled Length
    2-1/2
  • Lever Handling
    Reversible
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
