Metal Interconnect - 780 Deadbolt with Hancock Keyed Knob - with Pin & Tumbler

506H 11P

Enlarge Photo

Discontinued

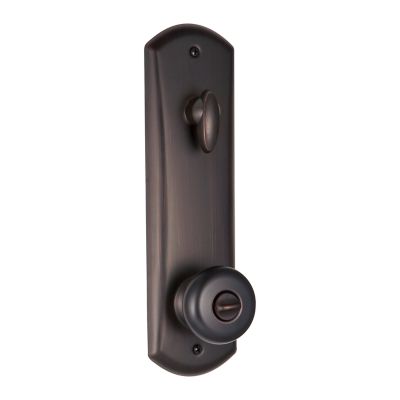

Product Image - kw_506h-kb-icn-entr-11p-int
Product clippedImage - kw_506h-kb-icn-entr-11p-int
Function:

Deadlock Latch

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • Universal handing; fits both right handed and left handed doors
  • Comes with 2 keys
  • Latch has narrow faceplate
  • ANSI/BHMA grade 2 certified
  • Latch has 2 3/4 in. backset
  • 1 in. deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches

  • Kwikset Family
    Hancock
  • Product Type
    Knob
  • Style
    Transitional
  • Entry Has SmartKey?
    No
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Assembled Length
    2-1/2
  • Latch Backset Size
    2-3/4
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
